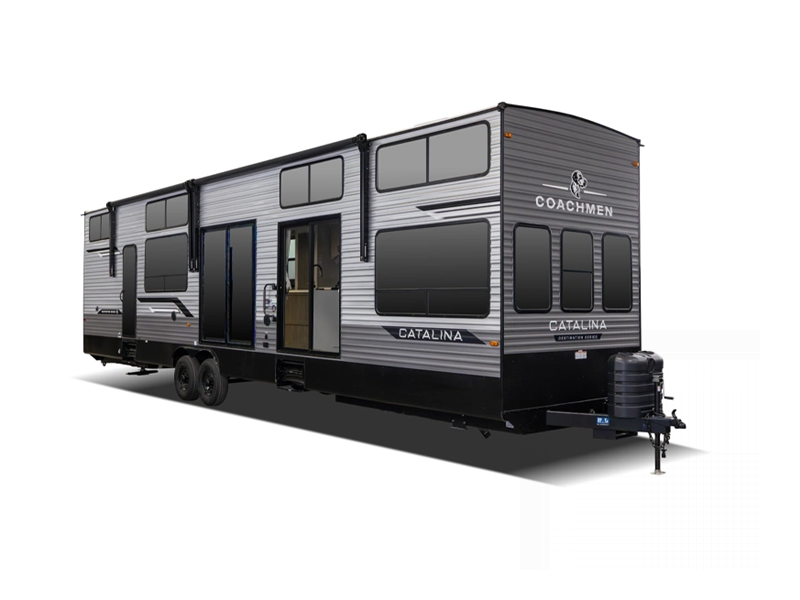

The Catalina Destination Series by Coachmen are destination trailers that are specifically designed for campers that extend their stays at their favorite location!

Each is built on a cambered structural steel l-beam frame, with a 3/4" fully decked walk-on roof, a Darco subfloor protective wrap/enclosure, and Dexter EZ Lube axles with leaf spring suspension.  A few more features include a battery disconnect switch on the A frame, upgraded graphics package, and an LP quick connect port. Inside you will find linoleum flooring, an upgraded slim design range hood, and an all-in-one entertainment TV with independent dual zone control.

Choose a Coachmen for the upholding quality, choose a Catalina Destination Series destination trailer to maximize your space, storage and comfort!
  • Specifications

    Sleeps 4
    Slides 3
    Length 40 ft 11 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 7 ft
    Hitch Weight 1330 lbs
    GVWR 11000 lbs
    Dry Weight 9409 lbs
    Cargo Capacity 1591 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 30 gals
    Furnace BTU 35000 btu
    Available Beds King
    Refrigerator Type Residential
    Refrigerator Size 18 cu ft
    Cooktop Burners 3
    Shower Size 48" x 30"
    LP Tank Capacity 30 lbs
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 15000 btu
    TV Info LR 39" TV
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat

    Similar Floorplans

  • Catalina Destination Series 39FKTS

    Catalina Destination Series 39FKTS Floorplan Image

    Take a Virtual Tour

    Coachmen Catalina Destination Series destination trailer 39FKTS highlights: ... more about Catalina Destination Series 39FKTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 3
    Length 40 ft 11 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 7 ft
    Hitch Weight 1110 lbs
    GVWR 11000 lbs
    Dry Weight 9539 lbs
    Cargo Capacity 1461 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 40 gals
    Furnace BTU 35000 btu
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type Residential
    Refrigerator Size 18 cu ft
    Cooktop Burners 3
    Shower Size 48" x 30"
    LP Tank Capacity 30 lbs
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 15000 btu
    TV Info LR 39" TV
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Shower w/Seat

    Similar Floorplans

  • Catalina Destination Series 39RLTS

    Catalina Destination Series 39RLTS Floorplan Image

    Take a Virtual Tour

    Coachmen Catalina Destination Series destination trailer 39RLTS highlights: Dual ... more about Catalina Destination Series 39RLTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 3
    Length 40 ft 11 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 7 ft
    Hitch Weight 1494 lbs
    GVWR 11000 lbs
    Dry Weight 9761 lbs
    Cargo Capacity 1239 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 30 gals
    Furnace BTU 35000 btu
    Available Beds King
    Refrigerator Type Residential
    Refrigerator Size 18 cu ft
    Cooktop Burners 3
    Shower Size 48" x 30"
    LP Tank Capacity 30 lbs
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 15000 btu
    TV Info LR 39" TV
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat

    Similar Floorplans

  • Catalina Destination Series 40BHTS

    Catalina Destination Series 40BHTS Floorplan Image

    Take a Virtual Tour

    Coachmen Catalina Destination Series destination trailer 40BHTS highlights: ... more about Catalina Destination Series 40BHTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 3
    Length 40 ft 11 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 7 ft
    Hitch Weight 1130 lbs
    GVWR 11000 lbs
    Dry Weight 9669 lbs
    Cargo Capacity 1331 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 40 gals
    Furnace BTU 35000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type Residential
    Refrigerator Size 18 cu ft
    Cooktop Burners 3
    Shower Size 48" x 30"
    LP Tank Capacity 30 lbs
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 15000 btu
    TV Info LR 39" TV
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Shower w/Seat

    Similar Floorplans

Catalina Destination Series Features:

Standard Features (2023)



Construction and Equipment

  • Universal Solar Prep w/ Installed Roof Panel Port
  • Full Lino in Slides and Bedroom
  • Cambered Structural Steel I-Beam Frame
  • Full Length Frame E-Coated Outriggers
  • 5/8" Tongue & Groove Plywood Floor Decking
  • 2"x3" Floor Joists on Approximately 12" Centers
  • 5" Floor To Frame Steel Lag Bolts
  • Darco Subfloor Protective Wrap/Enclosure
  • 3/8" Fully Decked Walk-On Roof
  • Seamless Alpha Roof Membrane with Lifetime Warranty
  • Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
  • 5/8" Plywood Under Bed & Dinette Base
  • 7’ Interior Height
  • Easy-Trac Rack and Pinion Slide-Out(s)
  • Schwintek Slide Out
  • R-7 Fiberglass Insulation Throughout
  • 10 Gal. Gas/Electric DSI Water Heater
  • Water Heater By-Pass Winterization Kit
  • 12V Demand Water Pump
  • Premium Exterior Graphics Package
  • Platinum .024" Aluminum Exterior w/.030 Skirt Metal
  • Polished HD Aluminum Fender Skirts
  • Dexter EZ Lube Axles w/Leaf Spring Suspension
  • Self Adjusting Brakes
  • Roto-Cast Holding Tanks
  • Painted Bumper w/ Drain Hose Carrier and End Caps
  • 35,000 BTU Auto-Ignition Furnace w/Wall Thermostat
  • 15,000 BTU Fully Ducted A/C
  • 50 AMP Elect. Service
  • Upgraded Aluminum Wheels
  • Magnetic Baggage Door Latches

Exterior

  • Heavy Duty Standard Tongue Jack
  • Black Tank Flush
  • Battery Disconnect Switch
  • Outside Utility Shower w/ Hands Free Holder
  • 20lb. LP Tank (2) w/ABS Cover
  • LP Quick Connect
  • Flush Mount Baggage Doors w/Radius Corners
  • Stabilizer Jacks
  • G20 Tinted Privacy Windows
  • (2) JBL Elite Exterior Speakers
  • Friction Hinge Door
  • Radius Cornered Fiberglass Entry Door
  • Exterior 110V G.F.C.I Protected Receptacle
  • Exterior RG-6 Coax Cabling and Satellite Prep
  • Exterior TV Hookup
  • Rain Gutters with Drip Spouts
  • Radius Entry Steps
  • XL Swing Arm Entry Assist Handle (Main Entrance Only)
  • Residential Sliding Glass Patio Door
  • Large Front Bay Windows
  • Bottle Openers (Exterior Camp Kitchens)
  • Pets - "Leash Link" Quick Hookup D-Ring

Safety

  • Smoke Alarm
  • LP/CO Gas Detector
  • Fire Extinguisher
  • Fire Escape Windows
  • Entrance Door Window
  • Dead-Bolt Lock on Entry Door
  • SafeRide RV Motor Club (1 YR Roadside Assistance)

Interior

  • (2) 12V 14" Ceiling Vent Fans (Living Room & Bathroom)
  • Magnydyne 4G LTE Connectivity with Wifi Booster and Extender
  • Siphon 360 Roof Vent in Bathroom
  • Accent Wall Board Behind Entertainment Center, Bedroom, and Camp Kitchen
  • 39" TV
  • Swing Arm TV Bracket
  • JBL Aura MP3/FM Stereo w/Bluetooth and USB Charge Port
  • (2) Multizonal JBL Premium Interior Speakers
  • 18 Cu. Ft. Residential Refrigerator
  • Seamless Thermofoil Countertops Throughout

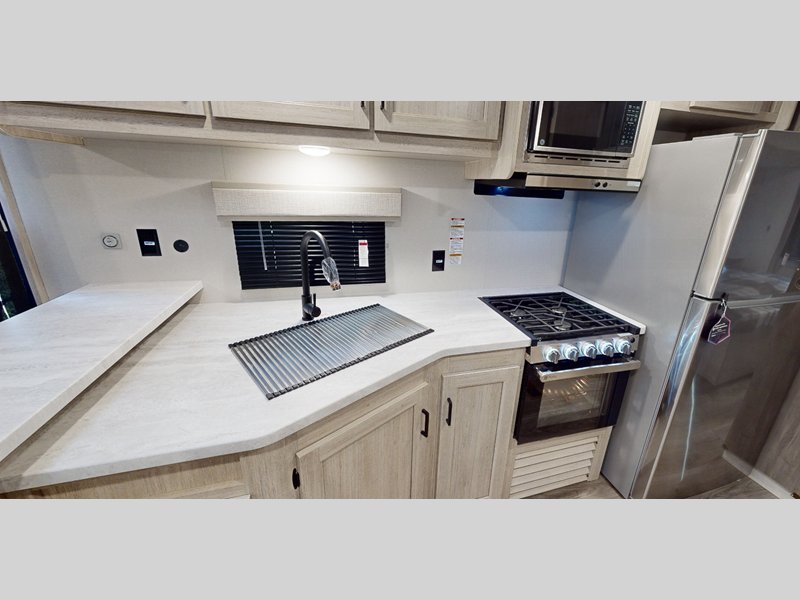

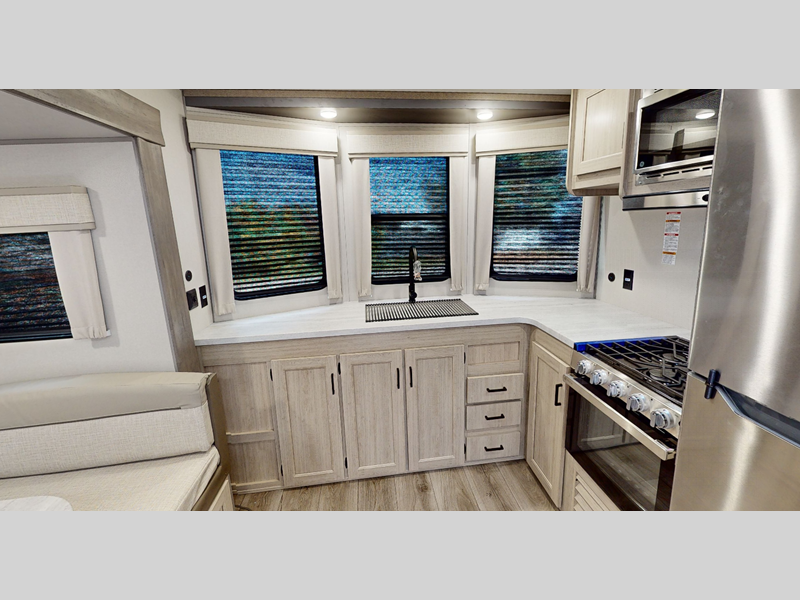

  • Under-mount Farm Style Sink
  • Residential Kitchen Faucet w/Pull Down Sprayer
  • Flush Counter Kitchen Sink Covers (2-Tandem Axle Models)
  • Full Length Kitchen Drawer Guides
  • LCI One Control Monitor Panel System

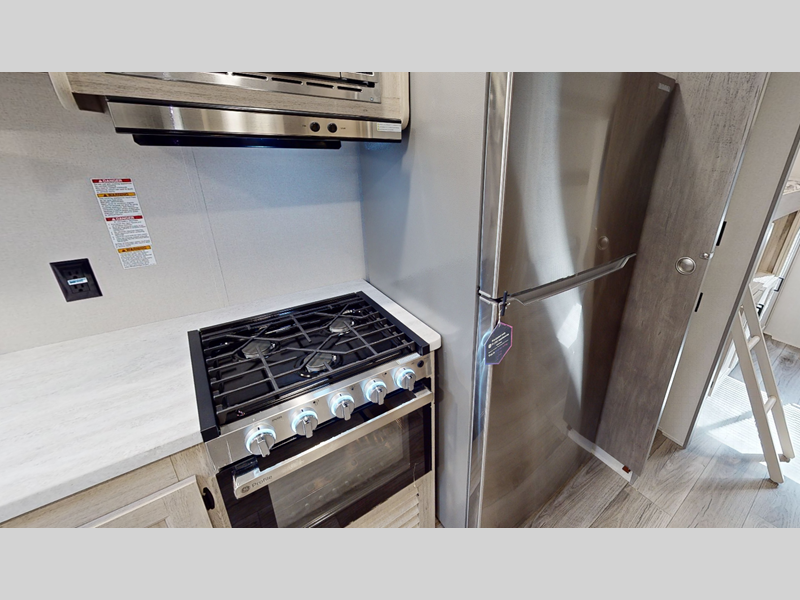

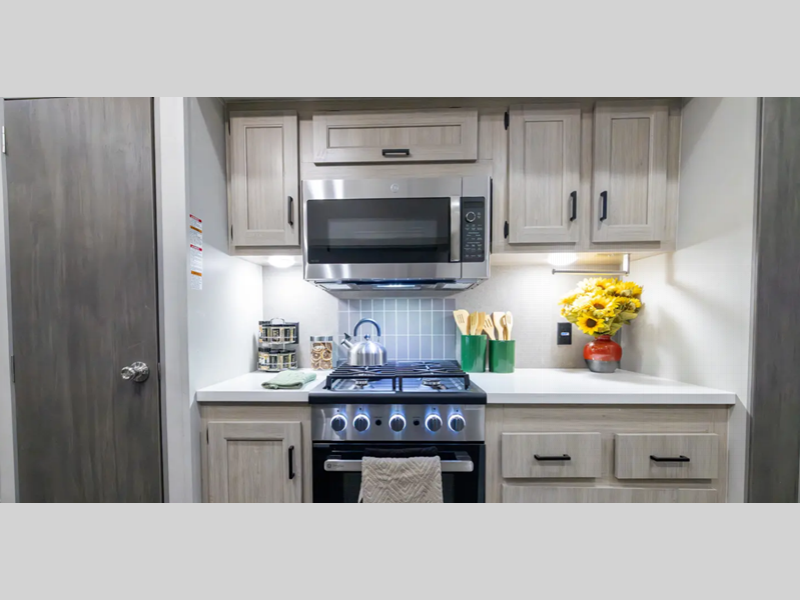

  • 3 Burner SST Range w/Flush Glass Top & LED Accent's (21" Oven)
  • Slim Line Range Hood
  • Silverware Kitchen Drawer

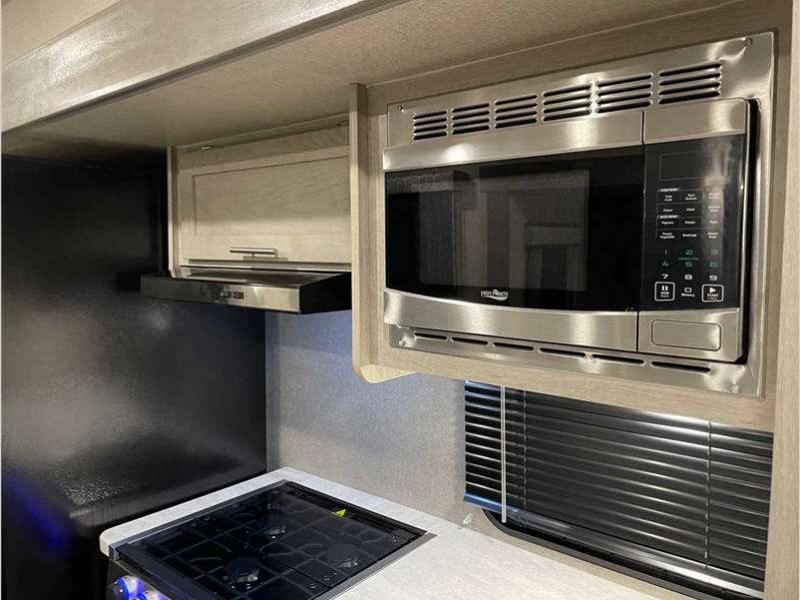

  • Microwave W/Glass Turn Table
  • Congoleum Woodplank Linoleum Flooring (including Slides and Bedroom)
  • Residential In-Floor Ducted Heat
  • 4,000 Lumen Interior Lighting
  • Directional Master Bed Reading Lights

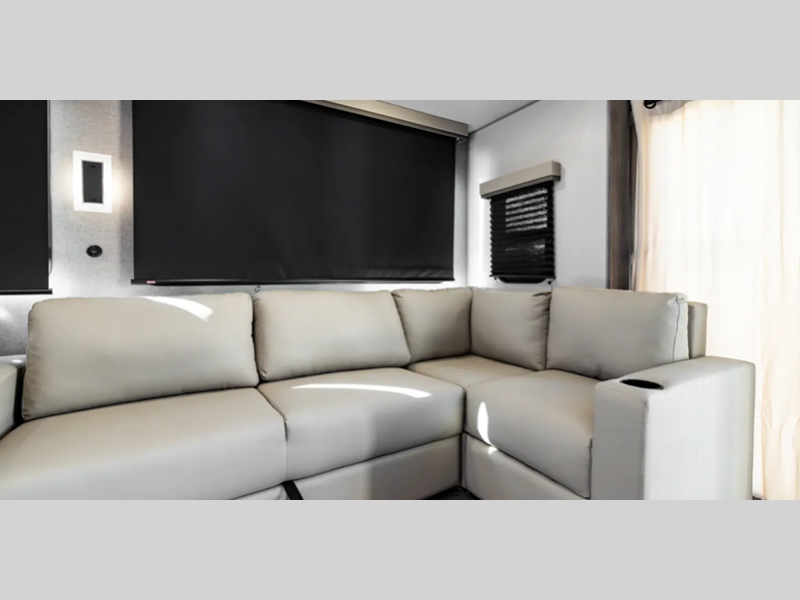

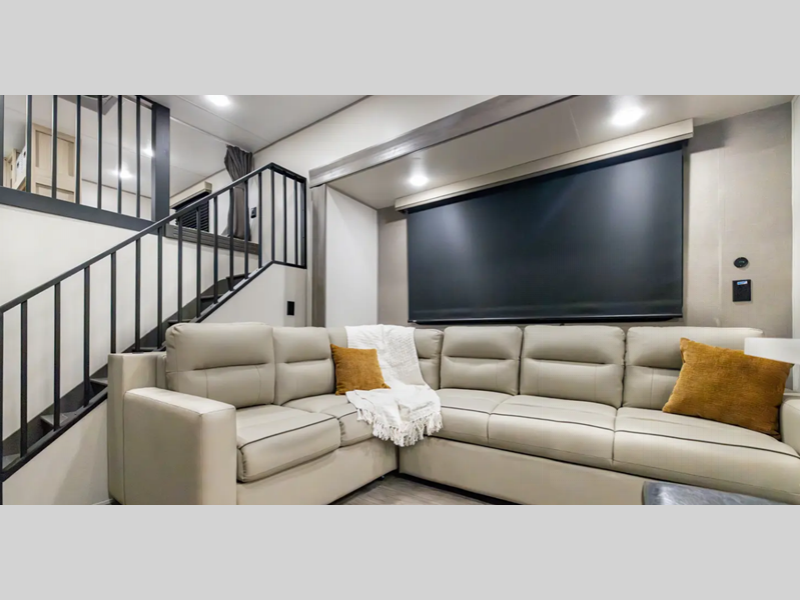

  • Residential Tri-Fold Sofa
  • Designer Wall Light Main Slide Room
  • Hard Valance Window Treatment w/Decorative Lambrequins
  • Pleated Night Window Shades
  • Pedestal Thermofoil Dinette Table
  • Under Bench Dinette Storage
  • Easy Access Booth Dinette Storage Doors
  • Marine Toilet with Foot Flush
  • ABS Tub/Shower Surround w/Shelves
  • Skylight Above Tub/Shower

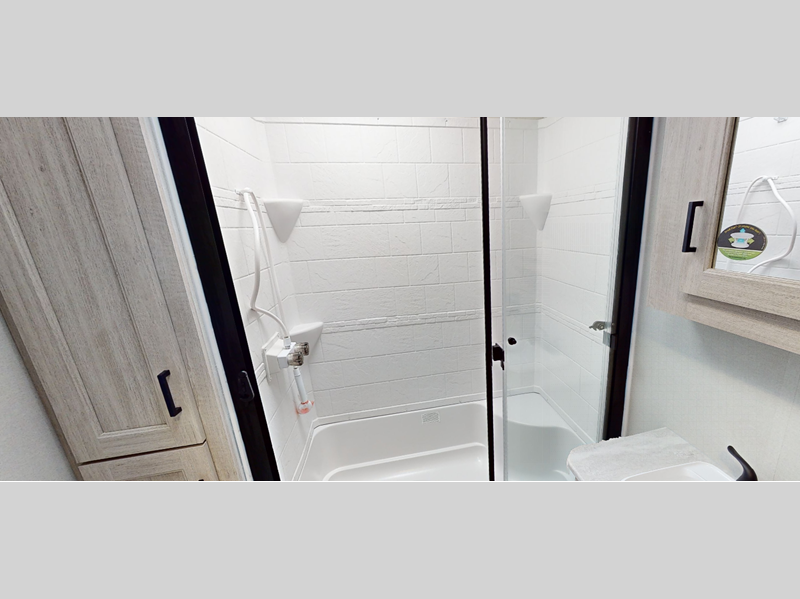

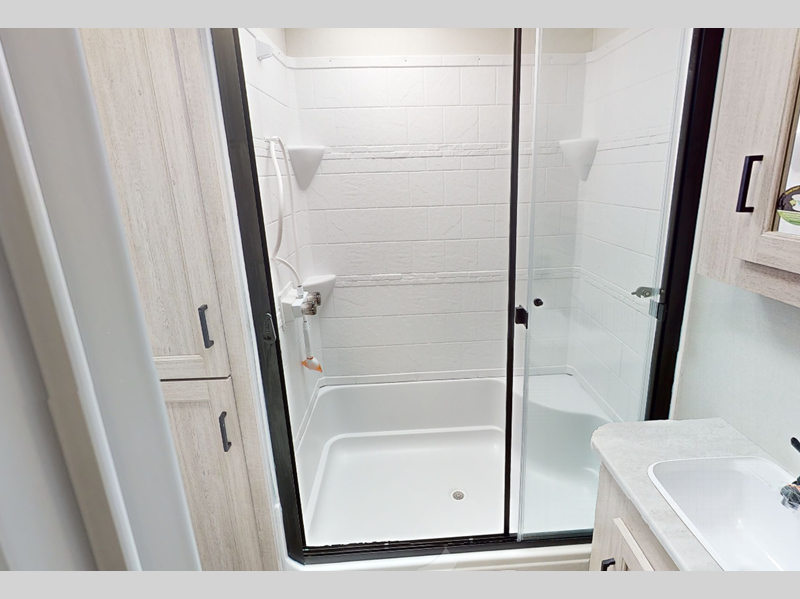

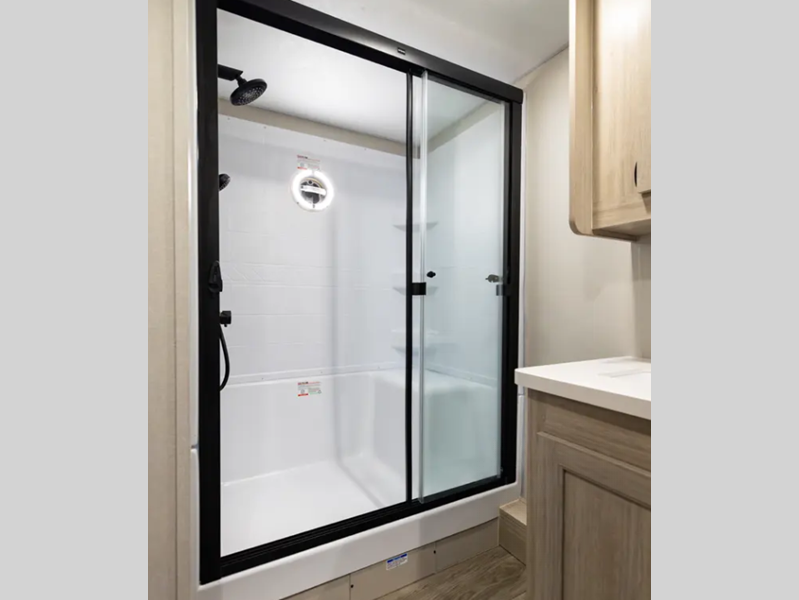

  • Glass Step-In Shower w/ABS Surround (Per Floorplan)
  • Medicine Cabinet with Mirror
  • Bedroom USB Surface Mounts(2)
  • Kitchen USB's & Outlets

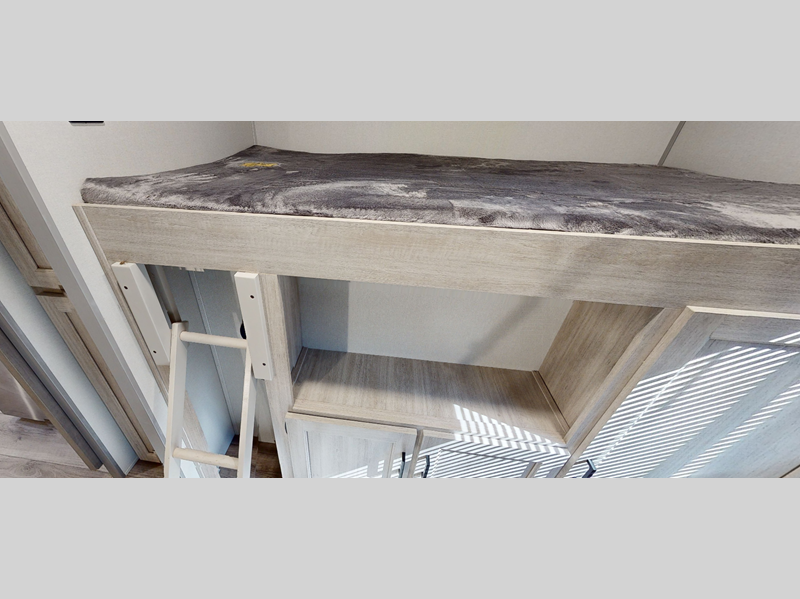

  • USB Surface Mounts Near Bunk Beds
  • Solid Master Bedroom Door(s) (Per Floorplan)
  • Solid Bunk Room Door (Per Floor Plan)
  • Mirrored Wardrobes in Master Bedroom (Per Floorplan)

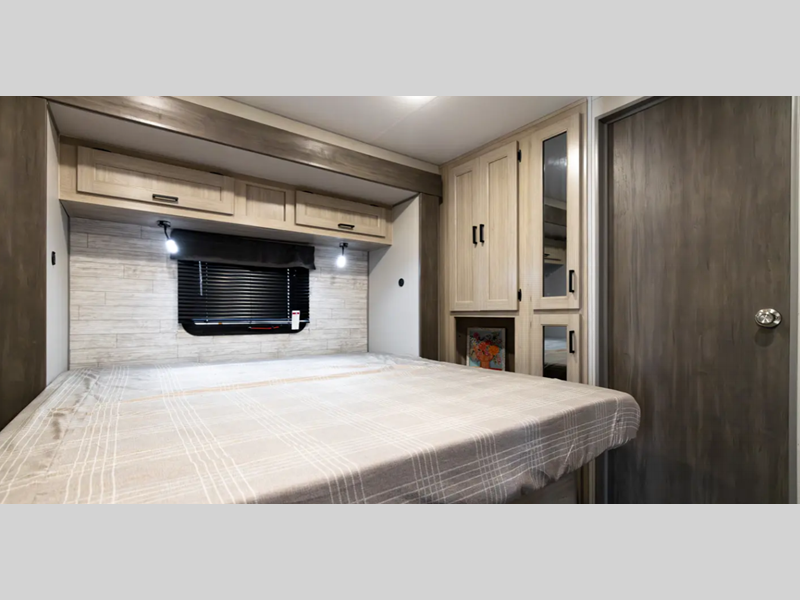

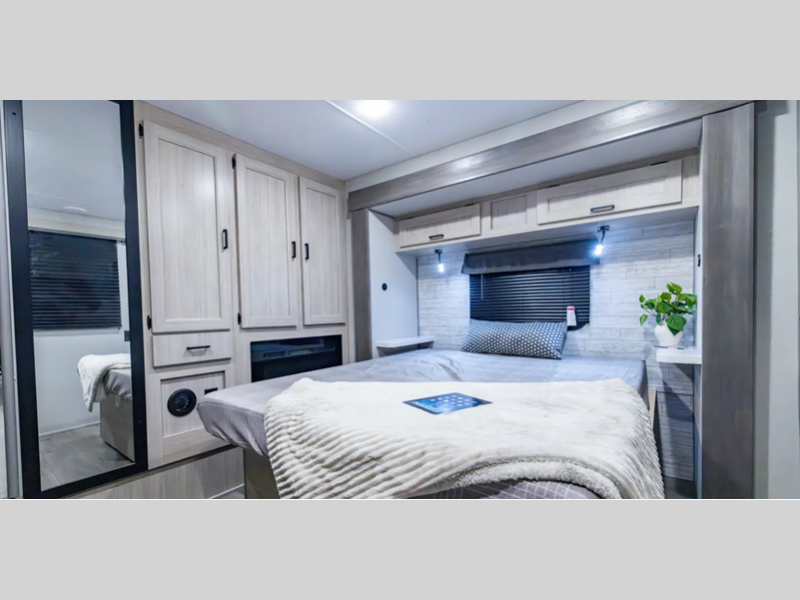

  • Master Bedroom Overhead Cabinets
  • Underbed Storage
  • Designer Fitted Master Bed Sheet
  • Teddy Bear Bunk Mats

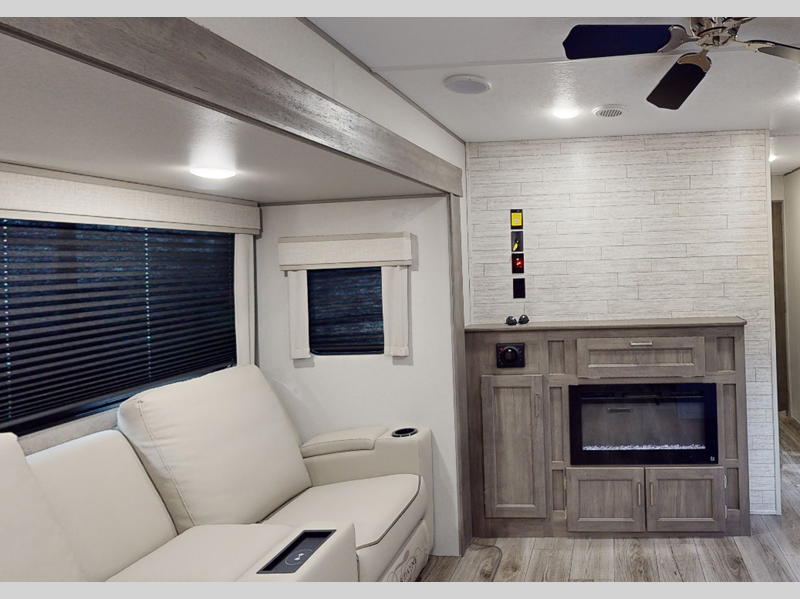

  • Fireplace w/Electric Heater in the Living Room
  • Ceiling Fans in Living Room and Master Bedroom w/Wall Switch
  • Premium Serta Mattress
  • King Bed (39MKTS, 39RLTS Only)
  • Washer/Dryer Prep (39MKTS, 39RLTS only)

Options

  • Enclosed, Fully Sealed Underbelly
  • Peak Performance Solar Package – 200W Panel w/ 30 A Solar Controller
  • 2nd 13,500 BTU A/C
  • Free Standing Table w/4 Chairs
  • Full Size Exterior Camp Kitchen (40BHTS)
  • GE Washer/Dryer Combo Unit (39MKTS, 39RLTS Only)
  • Electric Awning w/Multicolor LED Strip & Remote -Carefree
  • Spare Tire w/ Tire Carrier & Cover
  • Non-Self Contained w/Porcelain Toilet
  • Detachable Hitch
  • CSA Standards

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.



Due to the current environment, our features and options are subject to change due to material availability.
