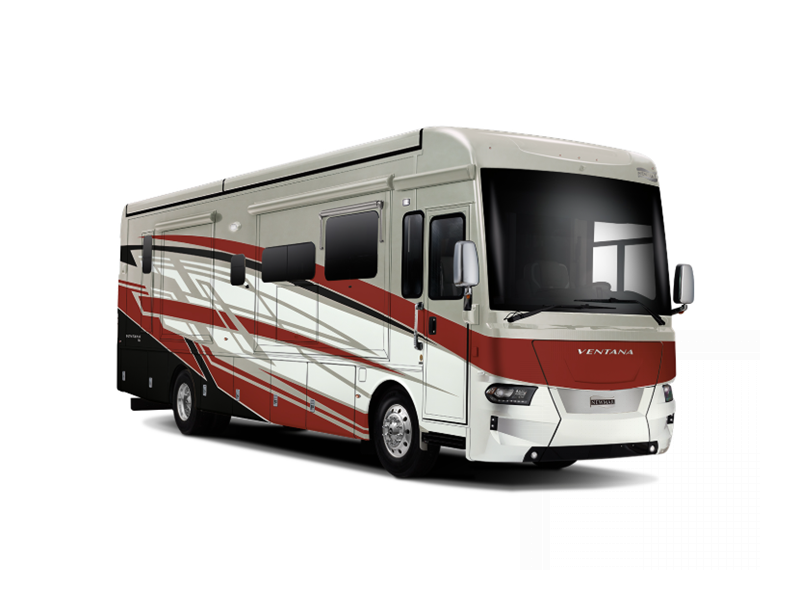

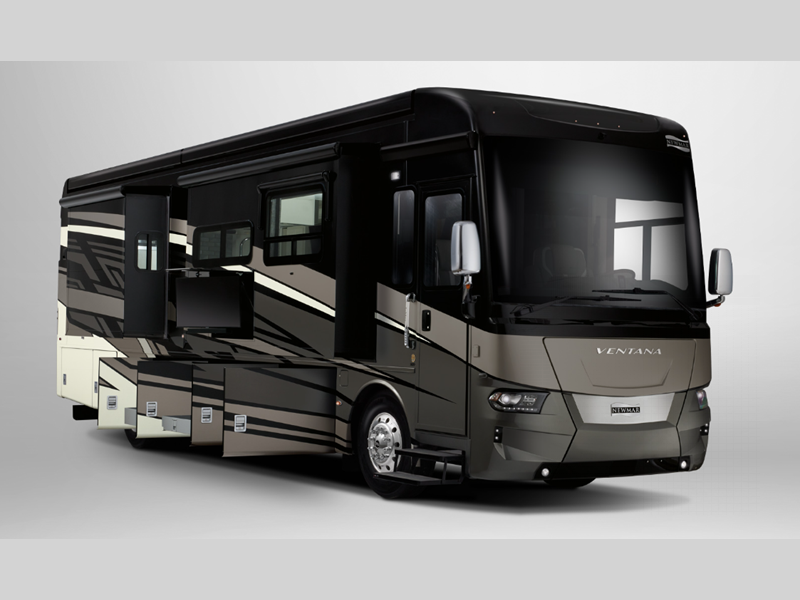

The Ventana Class A diesel motorhomes by Newmar combine flexibility and luxury for an outstanding coach! With all new designs, features, and decor, you are sure to fall in love, and each model features Newmar's exclusive full-paint Masterpiece Finish that will turn heads as you travel down the highway!



All floorplans are available on the durable Freightliner chassis or the optional Spartan chassis, and with each model you'll appreciate the STAR Foundation for maximum strength, durability, and a more stable ride. The industry-first Comfort Drive adaptive steering system will make the drive easier than ever, along with six-way power captain's seats. Porcelain tile flooring, polished solid surface countertops, and decorative wall art are just a few luxuries you'll enjoy with the Ventana, and there are many exterior amenities to make life on the road hassle-free. There is ample storage space for all your gear, a Girard G2000 power side awning, an 8.0 kW Cummins Onan diesel quiet generator, and so much more!



With so many choices and opportunities to explore the open road, the Ventana Class A diesel motorhomes by Newmar are an easy choice; choose yours today!







  • Specifications

    Sleeps 6
    Slides 3
    Length 40 ft 10 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 11 in
    Int Height 6 ft 11 in
    Interior Color Brighton, Palisades, Saguaro
    Exterior Color Barnet, Camden, Stroud
    Hitch Weight 15000 lbs
    GVWR 45000 lbs
    Dry Weight 35100 lbs
    Cargo Capacity 9900 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 55 gals
    Furnace BTU 54000 btu
    Generator 8.0 kW Cummins Onan Diesel Quiet Series
    Fuel Type Diesel
    Engine Cummins L 8.9
    Chassis Freightliner XCR Tag Axle
    Horsepower 400 hp
    Fuel Capacity 100 gals
    Wheelbase 245 in
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Norcold with Stainless Steel Front
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Shower Size 50" x 30"
    Number of Awnings 1
    Axle Weight Front 15000 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 10000 lbs
    LP Tank Capacity 32 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" Samsung LED 4K TV on Televator, BR Samsung LED 4K
    Awning Info Girard G2000 Power w/Wind Sensor, Remote, and LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 60000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Ventana 4369

    Ventana 4369 Floorplan Image

    Take a Virtual Tour

    Newmar Ventana Class A diesel motorhome 4369 highlights: Master Suite Bath and a ... more about Ventana 4369

    Specifications

    Sleeps 6
    Slides 3
    Length 43 ft 10 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 1 in
    Int Height 6 ft 11 in
    Interior Color Brighton, Palisades, Saguaro
    Exterior Color Barnet, Camden, Stroud
    Hitch Weight 15000 lbs
    GVWR 45600 lbs
    Dry Weight 36900 lbs
    Cargo Capacity 8700 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 55 gals
    Furnace BTU 50000 btu
    Generator 8.0 kW Cummins Onan Diesel Quiet Series
    Fuel Type Diesel
    Engine Cummins L 8.9
    Chassis Freightliner XCR Tag Axle
    Horsepower 400 hp
    Fuel Capacity 100 gals
    Wheelbase 281 in
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Whirlpool
    Refrigerator Size 19.7 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 50" x 34"
    Number of Awnings 1
    Axle Weight Front 15600 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 10000 lbs
    LP Tank Capacity 32 gals
    Water Heater Type Continuous
    AC BTU 45000 btu
    TV Info LR 50" Samsung LED 4K TV on Televator, BR Samsung LED 4K
    Awning Info Girard G2000 Power w/Wind Sensor, Remote, and LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 60600 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Ventana 3507

    Ventana 3507 Floorplan Image

    Newmar Ventana Class A diesel motorhome 3507 highlights: Triple Slides TV on ... more about Ventana 3507

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 3
    Length 35 ft 10 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 6 ft 11 in
    Interior Color Brighton, Palisades, Saguaro
    Exterior Color Barnet, Camden, Stroud
    Hitch Weight 10000 lbs
    GVWR 38200 lbs
    Dry Weight 31000 lbs
    Cargo Capacity 7200 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 55 gals
    Furnace BTU 35000 btu
    Generator 8.0 kW Cummins Onan Diesel Quiet Series
    Fuel Type Diesel
    Engine Cummins L 8.9
    Chassis Freightliner XCR
    Horsepower 380 hp
    Fuel Capacity 100 gals
    Wheelbase 212 in
    Available Beds King
    Torque 1150 ft-lb
    Refrigerator Type Norcold with Stainless Steel Front
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 40" x 32"
    Number of Awnings 1
    Axle Weight Front 14200 lbs
    Axle Weight Rear 24000 lbs
    LP Tank Capacity 32 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" Samsung LED 4K TV on Televator, BR Samsung LED 4K
    Awning Info Girard G2000 Power w/Wind Sensor, Remote, and LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 48200 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Ventana 3512

    Ventana 3512 Floorplan Image

    Newmar Ventana Class A diesel motorhome 3512 highlights: Wardrobe with Mirror ... more about Ventana 3512

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 4
    Length 35 ft 10 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 6 ft 11 in
    Interior Color Brighton, Palisades, Saguaro
    Exterior Color Barnet, Camden, Stroud
    Hitch Weight 10000 lbs
    GVWR 38200 lbs
    Dry Weight 31000 lbs
    Cargo Capacity 7200 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 55 gals
    Furnace BTU 35000 btu
    Generator 8.0 kW Cummins Onan Diesel Quiet Series
    Fuel Type Diesel
    Engine Cummins L 8.9
    Chassis Freightliner XCR
    Horsepower 380 hp
    Fuel Capacity 100 gals
    Wheelbase 212 in
    Available Beds King
    Torque 1150 ft-lb
    Refrigerator Type Norcold with Stainless Steel Front
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 40" x 30"
    Number of Awnings 1
    Axle Weight Front 14200 lbs
    Axle Weight Rear 24000 lbs
    LP Tank Capacity 32 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" Samsung LED 4K TV on Televator, BR Samsung LED 4K
    Awning Info Girard G2000 Power w/Wind Sensor, Remote, and LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 48200 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Ventana 3809

    Ventana 3809 Floorplan Image

    Newmar Ventana Class A diesel motorhome 3809 highlights: Full-Wall Slide King ... more about Ventana 3809

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 3
    Length 38 ft 10 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 6 ft 11 in
    Interior Color Brighton, Palisades, Saguaro
    Exterior Color Barnet, Camden, Stroud
    Hitch Weight 10000 lbs
    GVWR 39000 lbs
    Dry Weight 32900 lbs
    Cargo Capacity 6100 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 55 gals
    Furnace BTU 54000 btu
    Generator 8.0 kW Cummins Onan Diesel Quiet Series
    Fuel Type Diesel
    Engine Cummins L 8.9
    Chassis Freightliner XCR
    Horsepower 380 hp
    Fuel Capacity 100 gals
    Wheelbase 248 in
    Available Beds King
    Torque 1150 ft-lb
    Refrigerator Type Norcold with Stainless Steel Front
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 50" x 30"
    Number of Awnings 1
    Axle Weight Front 15000 lbs
    Axle Weight Rear 24000 lbs
    LP Tank Capacity 32 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" Samsung LED 4K TV on Televator, BR Samsung LED 4K
    Awning Info Girard G2000 Power w/Wind Sensor, Remote, and LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 49000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Ventana 3817

    Ventana 3817 Floorplan Image

    Newmar Ventana Class A diesel motorhome 3817 highlights: Hide-A-Bed Sofa Four ... more about Ventana 3817

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 4
    Length 38 ft 10 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 6 ft 11 in
    Interior Color Brighton, Palisades, Saguaro
    Exterior Color Barnet, Camden, Stroud
    Hitch Weight 10000 lbs
    GVWR 39000 lbs
    Dry Weight 32200 lbs
    Cargo Capacity 6800 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 55 gals
    Furnace BTU 54000 btu
    Generator 8.0 kW Cummins Onan Diesel Quiet Series
    Fuel Type Diesel
    Engine Cummins L 8.9
    Chassis Freightliner XCR
    Horsepower 380 hp
    Fuel Capacity 100 gals
    Wheelbase 248 in
    Available Beds King
    Torque 1150 ft-lb
    Refrigerator Type Norcold with Stainless Steel Front
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 40" x 32"
    Number of Awnings 1
    Axle Weight Front 15000 lbs
    Axle Weight Rear 24000 lbs
    LP Tank Capacity 32 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" Samsung LED 4K TV on Televator, BR Samsung LED 4K
    Awning Info Girard G2000 Power w/Wind Sensor, Remote, and LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 49000 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Ventana 4068

    Ventana 4068 Floorplan Image

    Newmar Ventana Class A diesel motorhome 4068 highlights: Pull-Out Kitchen ... more about Ventana 4068

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 3
    Length 40 ft 10 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 11 in
    Int Height 6 ft 11 in
    Interior Color Brighton, Palisades, Saguaro
    Exterior Color Barnet, Camden, Stroud
    Hitch Weight 15000 lbs
    GVWR 45000 lbs
    Dry Weight 35200 lbs
    Cargo Capacity 9800 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 55 gals
    Furnace BTU 54000 btu
    Generator 8.0 kW Cummins Onan Diesel Quiet Series
    Fuel Type Diesel
    Engine Cummins L 8.9
    Chassis Freightliner XCR Tag Axle
    Horsepower 400 hp
    Fuel Capacity 100 gals
    Wheelbase 245 in
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Norcold with Stainless Steel Front
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Shower Size 50" x 30"
    Number of Awnings 1
    Axle Weight Front 15000 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 10000 lbs
    LP Tank Capacity 32 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" Samsung LED 4K TV on Televator, BR Samsung LED 4K
    Awning Info Girard G2000 Power w/Wind Sensor, Remote, and LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 60000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Ventana 4310

    Ventana 4310 Floorplan Image

    Newmar Ventana Class A diesel motorhome 4310 highlights: Bunk Beds with Drawers ... more about Ventana 4310

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 3
    Length 43 ft 10 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 1 in
    Int Height 6 ft 11 in
    Interior Color Brighton, Palisades, Saguaro
    Exterior Color Barnet, Camden, Stroud
    Hitch Weight 15000 lbs
    GVWR 45600 lbs
    Dry Weight 36800 lbs
    Cargo Capacity 8800 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 55 gals
    Furnace BTU 85000 btu
    Generator 8.0 kW Cummins Onan Diesel Quiet Series
    Fuel Type Diesel
    Engine Cummins L 8.9
    Chassis Freightliner XCR Tag Axle
    Horsepower 400 hp
    Fuel Capacity 100 gals
    Wheelbase 281 in
    Number Of Bunks 2
    Available Beds Queen
    Torque 1250 ft-lb
    Refrigerator Type Whirlpool
    Refrigerator Size 19.7 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 50" x 30"
    Number of Awnings 1
    Axle Weight Front 15600 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 10000 lbs
    LP Tank Capacity 32 gals
    Water Heater Type Continuous
    AC BTU 45000 btu
    TV Info LR 50" Samsung LED 4K TV on Televator, BR Samsung LED 4K
    Awning Info Girard G2000 Power w/Wind Sensor, Remote, and LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 60600 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Ventana 4326

    Ventana 4326 Floorplan Image

    Newmar Ventana Class A diesel motorhome 4326 highlights: Flip Up Bunk Bath and a ... more about Ventana 4326

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 3
    Length 43 ft 10 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 1 in
    Int Height 6 ft 11 in
    Interior Color Brighton, Palisades, Saguaro
    Exterior Color Barnet, Camden, Stroud
    Hitch Weight 15000 lbs
    GVWR 45600 lbs
    Dry Weight 37000 lbs
    Cargo Capacity 8600 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 55 gals
    Furnace BTU 50000 btu
    Generator 8.0 kW Cummins Onan Diesel Quiet Series
    Fuel Type Diesel
    Engine Cummins L 8.9
    Chassis Freightliner XCR Tag Axle
    Horsepower 400 hp
    Fuel Capacity 100 gals
    Wheelbase 281 in
    Number Of Bunks 1
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Whirlpool
    Refrigerator Size 19.7 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 50" x 30"
    Number of Awnings 1
    Axle Weight Front 15600 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 10000 lbs
    LP Tank Capacity 32 gals
    Water Heater Type Continuous
    AC BTU 45000 btu
    TV Info LR 50" Samsung LED 4K TV on Televator, BR Samsung LED 4K
    Awning Info Girard G2000 Power w/Wind Sensor, Remote, and LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 60600 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Ventana 4328

    Ventana 4328 Floorplan Image

    Take a Virtual Tour

    Newmar Ventana Class A diesel motorhome 4328 highlights: Bath and a Half 19.7 ... more about Ventana 4328

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 3
    Length 43 ft 10 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 1 in
    Int Height 6 ft 11 in
    Interior Color Brighton, Palisades, Saguaro
    Exterior Color Barnet, Camden, Stroud
    Hitch Weight 15000 lbs
    GVWR 45600 lbs
    Dry Weight 36800 lbs
    Cargo Capacity 8800 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 55 gals
    Furnace BTU 50000 btu
    Generator 8.0 kW Cummins Onan Diesel Quiet Series
    Fuel Type Diesel
    Engine Cummins L 8.9
    Chassis Freightliner XCR Tag Axle
    Horsepower 400 hp
    Fuel Capacity 100 gals
    Wheelbase 281 in
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Whirlpool
    Refrigerator Size 19.7 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 40" x 32"
    Number of Awnings 1
    Axle Weight Front 15600 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 10000 lbs
    LP Tank Capacity 32 gals
    Water Heater Type Continuous
    AC BTU 45000 btu
    TV Info LR 50" Samsung LED 4K TV on Televator, BR Samsung LED 4K
    Awning Info Girard G2000 Power w/Wind Sensor, Remote, and LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 60600 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

Ventana Features:

Standard Features



Exterior

Standard

  • Full-Paint Masterpiece Finish™ with Diamond Shield Protection on Front Cap
  • Convex Exterior Mirrors with Remote Control, Defrost and Turn Signal Indicators
  • Chrome Exterior Mirrors
  • Entrance Door with Automatic Step
  • Rear Hitch for Towing Car
  • Assist Handle at Entrance Door
  • Mud Flaps
  • Rear Protective Tow Guard with Stainless Steel Newmar Letters
  • Undercoating
  • Smart Level Hydraulic Leveling Jacks with Bluetooth Compatible Touch Pad
  • Stainless Steel Exterior Trim Pieces on Front Cap and Grill Area
  • Painted Power Baggage Door Locks, Keyless Entrance Door with Touch Pad & Doorbell

Optional

  • Chrome Power Baggage Door Locks
  • Flag Pole Bracket
  • Rear Ladder
  • Storage Tray 26 X 91 Non-Power, Location Bay 2
  • Storage Tray 32 X 91 Non-Power, Location-Bay 2
  • Storage Tray 43 X 56 Non-Power, Location-Bay 3
  • Storage Tray 43 X 56 Non-Power, Location-Bay 4

Construction

Standard

  • Gelcoated Fiberglass Exterior Sidewalls, Front and Rear Caps
  • Aluminum-Frame Sidewalls & Roof Construction, 16" on Center
  • 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
  • Automatic Mechanical Lock Arms on Slideout Rooms-Scissor Style
  • Polar Pak R19 Batten Insulation in Roof
  • Fiberglass Roof and Integrated Gutter Rail
  • Egress Door with Ladder System

Chassis

Standard

  • Aluminum Wheels
  • Cruise Control
  • Comfort Drive™ Steering With Adjustable Control
  • Manual Tilt and Telescope Steering Column with VIP Smart Wheel
  • Recessed Fuel Fills with Crossover to Fill from Either Side
  • Back-Up Alarm
  • Anti-Lock Braking System
  • Chassis Battery Disconnect
  • V-Ride Drive Axle Suspension on Freightliner Chassis

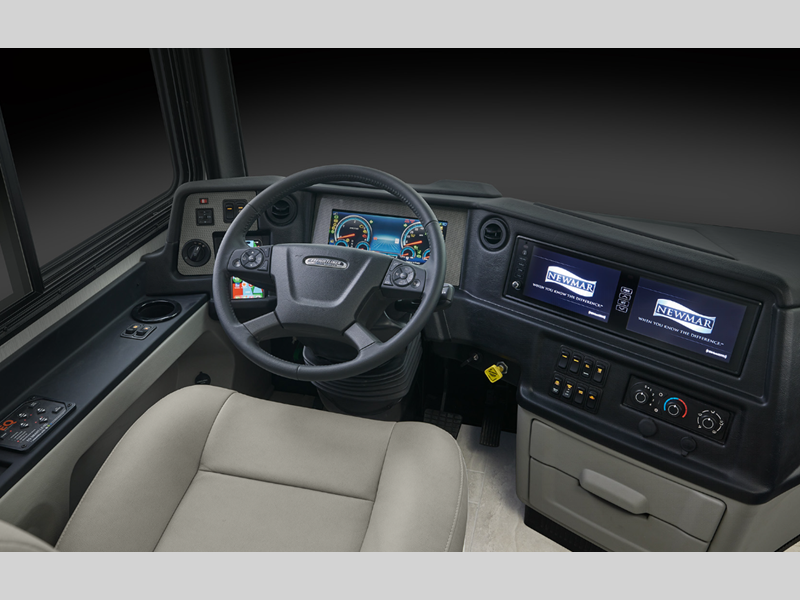

  • Glass Dash Instrument Panel
  • Dash Panel Optiview
  • Headlights Automatic High Beam
  • Mobile Eye Tracking and Lane Departure Warning System
  • Steering Wheel Nine Function Switch Pod in Center on Spartan Chassis
  • Valid Digital Glare Free Dash on Spartan Chassis
  • Freightliner® 380Hp on 35-38’ Floor Plans
  • Freightliner® Tag Axle 400Hp on 40-43’ Floor Plans
  • Tire Pressure Monitoring on Chassis

Optional

  • Spartan 380Hp on 35'-38'’ Floor Plans
  • Spartan Tag Axle 400Hp on 40-43’ Floor Plans
  • OnGuard Collision Mitigation Adaptive Cruise System with Adjustable Following Distance Control-Freightliner or Spartan

Mechanical and Electrical

Windows, Awnings, & Vents

Standard

  • Frameless Double-Pane Tinted Safety-Glass Windows
  • Fan-Tastic® Vent with Rain Sensor in Kitchen and Bathroom
  • Skylight Above Shower
  • Girard G2000 Power Side Awning with Wind Sensor, Remote Control & LED lights
  • Slideout Awning Covers
  • One Piece Tinted Windshield

Optional

  • Carefree Window Awning Pkg of (3), 1-Bedroom, 1-Off Door Side Livingroom, 1-Door Side Livingroom
  • Kitchen Window*
  • Two Nova Side Awnings
  • Bunk Windows*

Air Conditioning & Heating

Standard

  • Two-15M Penguin™ Heat Pump Air Conditioners
  • Three-15M Penguin Heat Pump Air Conditioner on 43’ Floor Plans
  • Propane Gas Furnace with Ducted Heat on 34’-40’ Floor Plans
  • Dash Heater and Air Conditioner
  • Chinook Dual Loop Heat with Continuous Hot Water on 43’ Floor Plans
  • Driver & Passenger Dash Overhead Ventilation System
  • Wall Mounted Sensors for Heating and Air Conditioning

Optional

  • Electric Radiant Heat Installed Below Main Floor Tile

Electrical

Standard

  • 8.0 kW Cummins Onan® Diesel Quiet Series Generator
  • 50 Amp Electrical Service with Flexible Cord with Automatic Transfer Switch
  • Four 6-Volt House Batteries on Pullout Tray on 35'-40' Floor Plans
  • Eight 6-Volt House Batteries on Pullout Tray on 43' Floor Plans
  • Battery Disconnect Switch for House Battery
  • Automatic Generator Start on Low Battery or Temperature Setting
  • 10 Watt Solar Panel to Charge Chassis Battery
  • 2000 Watt Modified Sine Inverter on 35'-40' Floor Plans
  • 2800 Watt Modified Sine Inverter on 43' Floor Plans
  • 12 Volt Auxiliary Receptacle on Dashboard
  • Emergency Engine Start Switch
  • Engine Block Heater
  • Exterior Security Light on Doorside
  • Midship Side Turn Signals
  • LED Lights Recessed in Ceiling and Underneath Overhead Cabinets
  • Lights in Exterior Storage Compartments
  • Manually Operated Hold-To-Run Slideout Switch
  • Cable TV Connection
  • Interior Courtesy Lights
  • USB Charger at Dinette & Bedroom Night Stand
  • USB Outlet at Dash for Drive Use
  • Wireless Charging Mat Built into Dash for Driver Use
  • Wireless Charging Mat Built into Passenger Console
  • Spare Fuses in Chassis and House Fuse Panels
  • Energy Management System
  • Multiplex Lighting Control System 10.1" in Center of Coach with Interior Lighting & HVAV Controls
  • Dimmable/Adjustable Reading Lights at Head of Bed
  • 110 Volt Recept in Bed Overhead with Two Pass Through Ports
  • 110V/USB Outlet at Head of Each Bunk Area*
  • 12 Volt Recept Auxiliary on Dashboard
  • Power Rewind Reel with 33’ Cord*
  • Power Rewind Reel with 50’ Cord*
  • Connected Solutions App
  • Dash Radio, Cameras and Monitors to Power-up from both House Batteries Ignition

Optional

  • Solar Prep with Six Gauge Wire Ran from the Roof to the House Battery Compartment
  • Four Flexible 100 Watt Solar Panels on Roof
  • Transfer Switch with Surge Protector

Plumbing & Bath

Standard

  • Demand Water System
  • Sewage Holding-Tank Rinse
  • Water Heater Bypass System
  • Dometic® 321 China Bowl Stool or Macerator Stool*
  • Sentrel Acrylic Shower Walls with Glass Door
  • Water Filter for Entire Unit
  • Exterior Shower
  • Auto Fill Water Works Compartment
  • Power Water Hose Reel
  • Aqua Miser Shower System

Optional

  • Fold Down Shower Seat
  • Hot Water Line to Generator Area*

Interior

Cabinets & Furniture

Standard

  • Bermuda Glazed Maple Hardwood Face Frame Cabinets with Mitered Panel Flat Designer Doors- Matte Finish
  • Concealed Hinges on Cabinet Doors
  • Pullout Pantry Shelves*
  • Soft Close Cabinet Drawers
  • Drawer Slides Push to Release in Pantry
  • Drawers with Full Extension Ball Bearing Guides
  • Cooktop Cover Flush, Matching Material
  • Polished Solid Surface Countertop in Kitchen with Under Mounted Stainless Steel Sink and Sink Covers
  • Polished Solid Surface Countertop in Bathroom and Bedroom
  • Desk with One Chair*
  • Dinette Booth Williamsburg Convertible*
  • Lifts on Bed Top
  • Passenger Seat Work Station
  • Ultrafabric Sofa and Driver/Passenger Seats
  • Driver Seat with Vibrator for Mobile Eye System
  • Driver/Passenger Seats with Six-Way Power, Power Lumbar and Footrest
  • Plush Pillow Top Mattress
  • Extended Rotation Concealed Hinge for Washer/Dryer Cabinet Door
  • Mesh Cell Phone Holder at Each Bunk Bed*
  • Molded Silverware Divider Tray
  • Villa Comfort Fit Furniture

Optional

  • Glacier Glazed Maple Hardwood Cabinets with Mitered Flat Designer Doors-Matte or High Gloss Finish
  • Newport Glazed Maple Hardwood Cabinets with Mitered Flat Designer Doors-Matte or High Gloss Finish
  • Bermuda Glazed Maple Hardwood Cabinets with Mitered Flat Designer Doors-High Gloss Finish
  • Mattress Air R5 Radius Corner
  • Buffet Dinette with Two Fixed and Two Folding Chairs
  • Combination Desk with Buffet Table, Two Fixed and Two Folding Chairs
  • Dinette Convertible with Two Fixed and Two Folding Chairs that Face to Window
  • Dinette Euro Booth with Two Table Leaves, Removable Table Leg and Two Folding Chairs
  • Two Recliners with Lampstand and Reading Lights
  • Powered Theater Seating 74”
  • Powered Theater Seating 84” with Reading Lights
  • Powered Theater Seating 87” with Reading Lights
  • Bunk Beds to Convert to Wardrobe

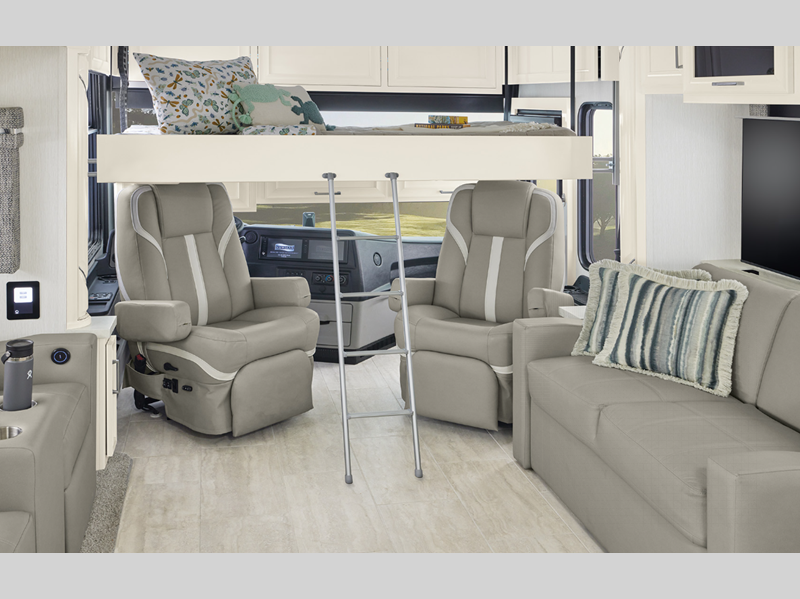

  • Bunk Bed Drop Down Over Driver and Passenger Seats to Windshield with Bunk Ladder

Appliances

Standard

  • Convection Stainless Steel Microwave with Three-Burner Recessed Gas Cooktop and Air Fryer Feature
  • All Electric, Cook Flush Mount Induction on 43’ Floor Plans
  • Air Horns
  • Norcold® 10 Cf. Refrigerator with Stainless Steel Refrigerator Front
  • Whirlpool® 19.7 Cf. on 43’ Floor Plans
  • Prep for Two-Piece Washer and Dryer
  • Fireplace in Living Area*
  • Water Heater 10 Gallon Gas/Electric with Direct Spark Ignition on 35’-40’ Floor Plans

Optional

  • Norcold® 15 Cf. Four-Door Refrigerator with Icemaker
  • Norcold® 15 Cf. Four-Door Refrigerator with Icemaker with Heated Water Line
  • Whirlpool® 11 Cf. Refrigerator with Two Extra Batteries, 22 gal. Propane Tank and Icemaker
  • Whirlpool® 11 Cf. Refrigerator with Two Extra Batteries, 22 gal. Propane Tank
  • Whirlpool® 19.7 Refrigerator with Two Extra 6 Volt Batteries and 22 gal. Propane Tank
  • Splendide Two-Piece Stacked Washer and Dryer
  • All Electric, Flush Mount Induction Cooktop, Whirlpool 19.7 Refrigerator, 4 Extra Batteries, 2800 Pure Sine Inverter
  • Hydronic Heat on 35’-40’ Floor Plans
  • Central Vacuum with Tool Kit
  • 110 Volt Heat Pads for Holding Tanks
  • Dishwasher in a Drawer with Stainless Steel Front Below Cooktop
  • Electrical Prep for Freezer without Tray
  • Beverage Center with Wine Cooler and Stemware Rack
  • Fireplace

Interior

Standard

  • Designer Feature Ceiling
  • Tile Floor in Kitchen, Bathroom and Living Areas
  • Carpeting on Slideout Floors
  • MCD Window Shades
  • MCD Power Shades at Windshield and Manual Shades on Driver/Passenger Side Windows
  • Dash Panel Color Coordinated ABS
  • Decorative Wall Art
  • Inlayed Three Panel Design Interior Passage Doors
  • Interior Assist Handle at Main Entry Door
  • Power Stepwell Cover
  • Fitted with Round Corner Non-Quilted Bedspread with Accent Pillows
  • Removable Transport Pads for Under Slideout Rollers
  • Waste Basket in Kitchen Base Under Sink

Optional

  • Safe Located in Bedroom Wardrobe

Entertainment

Audio & Video

Standard

  • Samsung LED 4K TV in Living and Bedroom Areas(TV Sizes Vary Per Floor Plan)
  • Samsung 50” LED 4K TV on Televator in Living Area*
  • Dash Radio with Harman/JBL 180 Watt Sound System and Subwoofer
  • Xite Dash Radio with Apple CarPlay ®, 9” Dual Monitors with Nav-N-Go Navigation System
  • Bose® Soundbar Sound System
  • Bluetooth Microphone for Dash Radio
  • Rear-View Color Monitor System with Audio
  • Side-View Cameras Displayed on Rear-View Monitor Screen
  • Winegard Digital Crank-up TV Antenna
  • Satellite Dish Prep on Roof
  • Two Bedroom Radio Speakers
  • TV Jack and 110 Volt Recept in Door Side Exterior Storage Compartment
  • High Definition Component Wiring
  • 10 Bc Fire Extinguisher, Smoke Detectors, Propane and Carbon Monoxide Detector

Optional

  • SiriusXM® Satellite Capability with Antenna (Does not include monthly subscription)*
  • Samsung® 43” 4K LED TV in Front Overhead
  • Exterior Entertainment Center in Sidewall with Samsung® 32” 4K LED TV and Bose® Soundbar
  • Exterior Entertainment Center in Sidewall with Samsung® 43” 4K LED TV and Bose® Soundbar

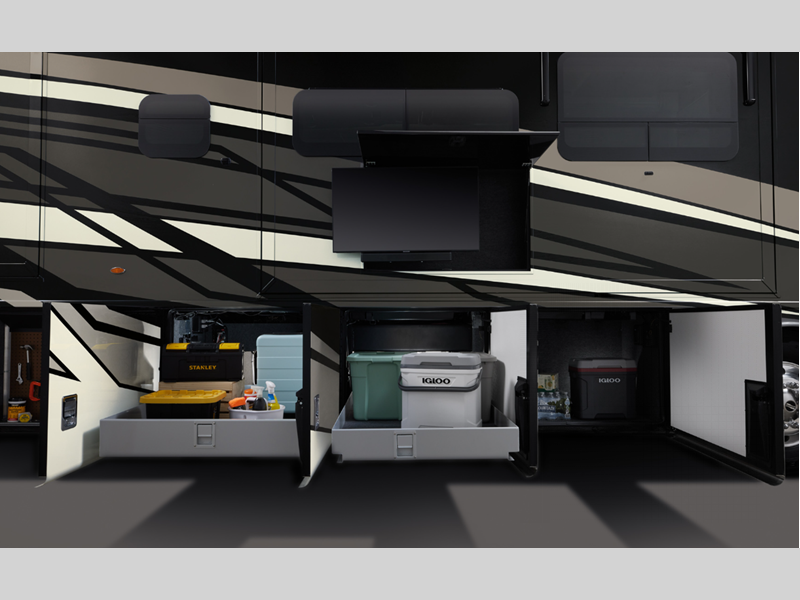

  • Exterior Entertainment Center in Storage Compartment with Samsung® 43” LED TV and Bose® Soundbar
  • Omniview NS360 Camera System*
  • Universal Remote Control
  • Universal Toll Module
  • Prep for Ground Tripod Satellite Dish on Off Door Side with A/B Switch
  • Two-19” Skyworth Monitors at Each Bunk*
  • WIFI Ranger Denali/Spruce LTE
  • WIFI System Everest with Aspen Interior Router
  • Winegard Automatic Dome Satellite Dish-Std/HD, DIRECTV Std. and Bell Canada
  • Winegard Automatic Open Face Satellite Dish-HD and Bell HD TV
  • Winegard Automatic Open Face SWM Satellite Dish-DIRECTV Std/HD
  • Winegard In-Motion Dome Satellite Dish-Std/HD, DIRECTV Std. and Bell Canada
  • Winegard Rayzar Automatic Digital TV Antenna

*Check with dealership on floorplan availability

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Newmar Logo

Newmar is a company built around the Christian faith, specifically the beginning of the Mennonite faith in 1525 under the guidance of Ulrich Zwingli, and the founding of the Amish fellowship under Jacob Amman in 1693.



At Newmar, we believe that a motor coach is more than just a vehicle, it’s a passport to countless hours of fun and a lifelong memories taken from quality time spent with family and friends.



For over 50 years, we’ve applied our principles to the creation of motor coaches that have allowed people all over the world to live the RV lifestyle. And we’ll continue to so for countless generations to come. It’s why we take pride in every rivet, weld, and mechanical function.
