Floorplan - 2015 Newmar King Aire 4553
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1 of 51
+51- Our Price: $399,900
Payments From:
$2,788 /mo.
-
Sleeps 4
-
3 Slides
-
Bath and a HalfRear Bath
-
45ft Long
-
46,400 lbs
-
Florence, Volare, Montage, Ave

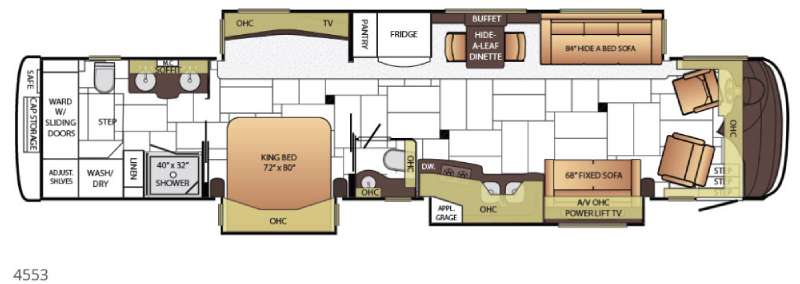

4553 Floorplan
4553 Floorplan
Specifications
Specifications
| Sleeps | 4 | Slides | 3 |
| Length | 44 ft 11 in | Ext Width | 8 ft 6 in |
| Ext Height | 13 ft 4 in | Int Height | 7 ft |
| Interior Color | Florence, Volare, Montage, Ave | Exterior Color | Venice, Poppy, Torino, Cordova |
| GVWR | 54000 lbs | Dry Weight | 46400 lbs |
| Cargo Capacity | 7600 lbs | Fresh Water Capacity | 140 gals |
| Grey Water Capacity | 80 gals | Black Water Capacity | 60 gals |
| Furnace BTU | 50000 btu | Fuel Type | Diesel |
| Engine | Cummins ISX 600 Hp | Chassis | Spartan |
Description
Description
Both the driver and passenger seat swivel around to add additional seating. Along the curbside there is a slide with a fixed sofa, double kitchen sink, and two burner range. Just before you enter into the bedroom you will find a convenient half bath. On the opposite side of the motor home, the full wall slide has a hide-a-bed sofa, hide-a-leaf dinette and buffet, refrigerator, pantry, and TV in the bedroom.
You will also find a slide with a king bed in the bedroom. The master bathroom has two sinks, toilet, shower, linen cabinet which is great for storing towels or toiletries, and wardrobe with adjustable shelves.
Features
Features
Standard Features (2015)
Chassis
- Spartan® K3 GT Passive Steer Tag Axle Chassis with 600Hp Cummins ISX Engine Allsion 4000MH Transmission
- Comfort Drive Steering with Power Column and Adjustable Control Alcoa Dura-Brite Aluminum Wheels
- Hydraulic Leveling Jacks
- Power Tilt-and-Telescope VIP Smart Wheel with Black Leather
- Memory Settings for Drivers Seat, Pedals, Steering Column and Exterior Mirrors
- Recessed Fuel Fills with Crossover to Fill from Either Side Anti-Lock Braking System
- Electronic Chassis Information Center in Dash
- Tire Pressure Monitor System
- Air Leveling Control System
- Trip Travel Information, Displayed Onto Rear View Monitor Screen
Air Conditioning & Heating
- Three 15M Penguin™ Heat Pump Central Air Conditioners with Remote Control Thermostat
- Hydronic Zone Heating System
- Roof Air Conditioning Drainage System Driver/Passenger Dash Overhead Ventilation System
Appliances & Accessories
- 30" GE Profile Advantium Microwave with Two Burner Gas Cooktop
- Whirlpool Stainless Steel 19.8 Cf. Refrigerator with Icemaker and Water Dispenser
- Dometic Freezer on Pullout Tray
- Whirlpool Two Piece Stacked Washer and Dryer
- Central Vacuum with Tool Kit
- Dishwasher in a Drawer Below Cooktop
Audio, Video & Accessories
- Sony LED TV & Blue Ray DVD Player in Living and Bedroom Areas* Sony 48" LED TV on Televator in Living Area*
- Sony Surround Sound System with Bose Acoustimass Speaker System & Sub-Woofer
- Sony Tablet with Control of AV Equipment, Lights, Shades, Keyless Entry and Silverlead App
- Bose Solo Speaker with Bluetooth Adapter in Bedroom
- Dash Radio with Touch Screen Navigation, Dual Monitors, Speakers and Sub-Woofer
- High Definition Component Wiring
- Sirius Satellite Radio-Ready with Antenna (Does not include SIRIUS Monthly Subscription)
- Satellite Dish Prep on Roof
- Winegard Power Lift Digital TV Antenna
- Infra-Red Reapter System to Operate Audio/Video Components
- Wireless Router
- Cellular Remote Access
- Sable Maple Hardwood Cabinets with High Gloss Finish and Full Overlay Doors
- Polished Solid Surface Countertops Throughout Living Area, Kitchen, and Bedroom with Undermount Stainless Glass Sinks
- Polished Solid Surface Countertop in Bathroom with Vessel Sinks in Master Bathroom
- Drawers with Dove Tailed Sides with Self Closing Full Ball Bearing Guides Villa Furniture
- Heated Front Seats with Power Lumbar, Footrest, Recline & Oversized Passenger Seat
- Cedar Paneling in Rear Wardrobe
- Passenger Seat Work Station
- Sleep Number Premier Air Mattress
- Power Sofa in Door Side Slideout on 4582, 4584 Floorplans
Electrical
- 12.5 kW Cummins Onan® Diesel Quiet Generator on Hydraulic Slide and Auto Changeover
- 50-Amp Electrical Service with Flexible Cord and Automatic Transfer Switch Eight 6-Volt AGM House Batteries on Pullout Tray
- 5-Watt Solar Panel to Charge Chassis Battery
- Solar Prep Wire from Roof to Charge House Batteries
- Two 3000 Watt Pure Sine Inverters
- Engine Block Heater
- LED Recessed Lighting in Ceiling and Overhead Cabinets
- Exterior LED Accent Lights Below Door Side Slideout & Perimeter of Unit
- LED Lights in Exterior Storage Compartments on Automatic Switches
- Exterior LED Accent Lights Above Rear Tow Guard
- Rear Hitch Docking Lights
- Accent Lights in Ceiling, Lambrequins, Kitchen, Bed Base, Fascia Trim & Dash
- Silverleaf Multiplex Control System
- 12-Volt Auxiliary Recept on Dashboard
- 110-Volt Exterior Recept
- Automatic Generator Start on Low Battery or Temperature Setting WiFi/Cellular Interface for Keyless Entry and Air Conditioning
- Recept with Built In USB Charger at Dinette and Bedroom Dresser Cabinet Secondary Multiple Touch Screen in Bedroom
- 20K Rear Hitch for Towing
Exterior
- Full-Paint Masterpiece™ Cut & Buff Finish with Nano Shield Protection on Front Cap
- Exterior Painted Graphics
- Convex Exterior Chrome Mirrors with Remote Control, Defrost, Turn Signals & Side View Cameras
- Stainless Steel Trim Pieces
- Dual Latch Front Door with Power Flush Stepwell Cover
- Power Baggage Door Locks, Keyless Entrance Door with Touch Pad and Door Bell Exterior Baggage Doors with Power Locks*
- Mechanical Lock Arms on all Slideout Rooms
- Holding Tank Levels Displayed in Exterior Water Works Compartment Lighted Exterior Storage Compartments with Cargo Liner
- Stainless Steel Kick Panel at Entrance Door
- Rear Protective Stainless Tow Guard
- Large Storage Tray
- Two Power Sliding Storage Trays
- Powered Door Lift for Engine Access
Interior
- Designer Feature Ceiling
- Auto Motion Power Dual Window Shades and Lambrequins
- Auto Motion Power Shades for Windshield and Driver/Passenger Side Windows
- Polished Solid Surface Window Sills
- Polished Porcelain Floor Tile in Kitchen, Bathroom, and Living Areas, Carpet in Slideouts
- Kitchen Accent Rug
- Removable Transport Pads for Under Slideout Rollers
- Shoe Storage Shelves Recessed into Rear Cap Wardrobe
- Interior Assist Handle at Main Entry Door
- Safe Located in Bedroom Wardrobe
- Quilted Bedspread, Bedscarf and Accent Pillow
- 10 Bc Fire Extinguisher, Carbon Monoxide and Smoke Detectors
Plumbing & Bath
- Demand Water System
- Dometic Concerto Electric Flush or Macerator China Bowl Stool*
- Solid Surface Shower Walls with Decorative Inserts
- Systems Monitor Panel
- MANABLOC Plumbing System
- Auto Water-Fill System
- Auto Water-Fill System
- Stainless Steel Front with Diamond Shield Protection on Exterior Convenience Wash Station
- Touchless Faucet and Dispenser at Kitchen Sink
- UV/Carbon Filter Draining Water Purifier with Dedicated Kitchen Faucet Power Dump Valves for Holding Tanks
Construction
- 5/8" Foam Insulation Laminated in Sidewalls and Ceiling Gelcoated Fiberglass Exterior Sidewalls
- Front and Rear Caps Aluminum-Frame Sidewalls and Roof Construction
- 16" on Center Fiberglass Roof with Walkable Decking and Integrated Gutter Rail Polar Pak R19 Batten Insulation in Roof
Windows, Awnings And Vents
- Frameless, Double-Pane Tinted Safety-Glass Windows
- Fan-Tastic® Vent with Rain Sensor in Kitchen Area and Bathroom
- Driver’s-Side Power Window
- Girard Slideout Covers, Power Awnings on Windows and Entrance Door
- Two Girard Nova Power Side Awnings with Wind Sensor, Remote Control & LED Lights
- One Piece Bonded Tinted Windshield Skylight Above Shower
Chassis
- VORAD Adaptive Cruise System
Air Conditioning And Heating
- Electric Heat Under Floor Tile
Appliances And Accessories
- All-Electric with Flush Kenyon Cooktop and Eight Extra Batteries*
Audio, Video & Accessories
- Sony 40" LED TV in Front Overhead Cabinet
- Sony 48" LED TV on Televator Behind Non-Sleeper Fixed Sofa*
- Exterior Entertainment Center in Sidewall with Sony 40" LED TV in place of standard
- Remote-Controlled Rearview Color Camera
- Satellite Dish without Receiver*
- Security System
- Extra Monitor for Navigation System on Passenger Side
Cabinets And Furniture
- Manhattan Glazed Maple High Gloss Hardwood Cabinets
- Rattan Maple Glazed High Gloss Hardwood Cabinets
- Ginger Glazed Cherry High Gloss Hardwood Cabinets
- Villa Ultra Leather Sofa/Dinette Ensemble with Two Folding Chairs* Off Door Side Two Swivel Wall Hugger Recliners with Lamp Stand Extenda "L" Sofa on off Door Side*
- Villa Extenda Flex Dinette with Two Folding Chairs*
- Villa Sofa/Euro Booth Dinette Ensemble with Two Folding Chairs*
- Power Flip Up Sofa in Bed Base*
- Message Feature Added to Driver/Passenger Seats
- Door Side 48" Televator TV Off Door Side Extenda L Sofa, Villa Eura Booth Dinette and Overhead Cabinet
- Door Side 68" Dormi Sofa with Air Mattress*
- Door Side 48" Televator TV, Off Door Side Extenda L Sofa, Desk/Buffet Dinette and Overhead Cabinet
- Door Side 48" Televator TV, Off Door Side Extenda L Sofa, Villa U-Dinette and Overhead Cabinet
- Third Bunk with 11" Flip Down LCD Monitor/DVD Player
- Power Incline Retracting Bed Base
- Power Incline Head of Bed
- Combination Desk/Dinette with Buffet with Two Fixed/Two Folding Chairs
Electrical
- Roof-Mounted Spot Light
- Six Sunforce Flexible 95-Watt Solar Panels on Roof
Exterior
- Stainless Steel Trim Kit for Exterior Compartment Doors
Interior
- Power Silhouette Window Shades
- Traditional Style Passage, Wardrobe, Cabinet Doors & Pulls, Slideout Fascia Trim and Headboard
- Carpet in Bedroom in Place of Tile
Plumbing & Bath
- RV Sanicon System
- Black China Bowl Stools
Windows, Vents & Awnings
- Large Window Above Bed Concealed with Sliding Doors
See us for a complete list of features and available options.
All standard features and specifications are subject to change.
