Floorplan - 2016 Heartland Cyclone 3611JS
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

- Our Price: $47,495
- List Price: $64,831
- Discount: $17,336
-
Sleeps 8
-
3 Slides
-
Bath and a HalfLoft
-
39ft Long
-
15,305 lbs

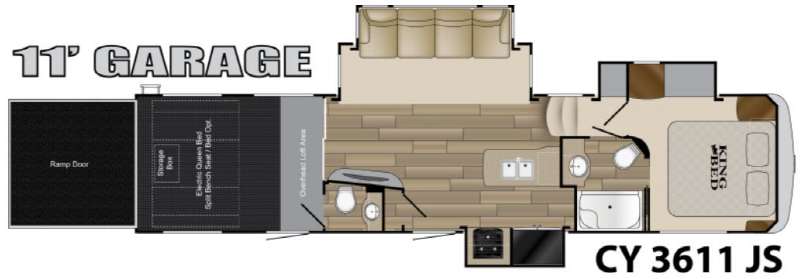

3611JS Floorplan
Specifications
Sleeps | 8 | Slides | 3 |
Length | 39 ft 2 in | Ext Width | 8 ft 5 in |
Ext Height | 13 ft 3 in | Int Height | 6 ft 4 in |
Hitch Weight | 3485 lbs | GVWR | 17000 lbs |
Dry Weight | 15305 lbs | Cargo Capacity | 1635 lbs |
Fresh Water Capacity | 100 gals | Grey Water Capacity | 40 gals |
Black Water Capacity | 80 gals | Tire Size | 16" |
Furnace BTU | 35000 btu |
Description
Step inside using the rear ramp door, or one of the two side man doors. The spring assist ramp will make loading and unloading a cinch. The steel ring tie downs will help to secure your load for travel. Once you arrive at your destination and the toys are removed you can enjoy the added living space created. Just inside the ramp door find a floor storage box for tools, and an electric queen bed with split bench / bed option. In the front portion of the garage space there is an overhead loft that overlooks the main living area inside, plus a half bath just off the cargo area next to the side man entry door. The half bath features a toilet and vanity with sink.
Enter the main living area using the sliding glass patio doors, or the center most side entry. Inside enjoy a wide open space thanks to dual opposing slides. One slide features a large super sofa, and a second smaller slide to the right of the side entry features a double door refrigerator, and three burner range plus overhead. There is a counter peninsula with double sink, and more overhead cabinetry for your things. Cooking will be as easy as it is at home in this Heartland Cyclone.
A nice entertainment center with LED TV is also available along the outer half bath wall. This can easily be viewed from the sofa slide out.
Head up the steps to a front master bedroom and full bath. The bath is at the top of the steps up on your right. Here you will enjoy a tub/shower, toilet, vanity with sink, and overhead cabinet, plus toilet. A second sliding bath door allows you quick access to the front master bedroom.
The bedroom features a king size bed with nightstands and overhead storage, plus a shelf at the head of the bed. There is also a slide out wardrobe with drawer space and more for all of your clothing needs.
You can also choose to add the outside ramp patio with stairs for the ultimate entertaining space, an exterior 40" TV, plus so much more!
Features
- LED lighting throughout
- Walnut cabinets
- 18 cu.ft. refrigerator (12 cu. ft. in 3418)
- Solid surface countertops
- Spring loaded hidden hinges
- Steel ball-bearing drawer guides
- Large cabinet storage
- Detachable sprayer faucet
- Deep stainless steel kitchen sink
- 30” residential space saver microwave oven
- Solid surface sink covers
- Custom monitor control panel
- (2)15,000 BTU A/C whisper quiet system
- Air vent in loft
- His/hers reading lights in loft
- Overhead cabinets or shelving throughout
- High quality residential furniture
- Fantastic fan with rain sensor in kitchen
- Patio sliding door (N/A 3418, 4113, 4150, 4200, 4250)
Bath & Bed
- Single level master suite
- Residential one-piece fiberglass Neo-Angle shower or sunken tub
- Foot flush porcelain commode
- Heat and A/C vents in main bathroom
- His and hers closets
- Large vanity drawers
- Skylight over shower
- Power bath vent
- Washer dryer prep (N/A 3418, 300C)
- Residential pillow top King mattress (most models)
- Correct track alignment system
- Six point hydraulic leveling system Level-Up
- 16” G-rated tires with aluminum wheels
- One-piece walk-on EPDM roof
- Welded tubular aluminum construction
- Stunning exterior graphics
- 12” I-beam powder coated steel frame (10” I-beam 300C, 3110, 3418)
- Heated and enclosed underbelly
- Triple 7,000 lb. axles (most models)
- Double 7,000 lb. axles (3110, 300C, 3418, 3611 JS)
- E-Z Flex suspension
- Industry leading, unobstructed pass-through storage
- Universal docking center (All system hook-ups located in one, convenient, concealed compartment)
- Easy grip quad steps
- Entry assist handle
- 80 Amp power convertor
- 50 Amp service with detachable cord
- Hi-flow water pump
- Deep tinted max vent windows
- Radius, 1” thick slam baggage doors
- Rain gutters with spouts
- Patented overhead cab technology (300C)
- (Four) side scare lights
- Rear flood lights x two
- Exterior hot/cold shower with high pressure nozzle
- Outside mini fridge (some models)
- Dual 30 lb. LP tanks
- Auto transfer switch
- Wide body design
- Huge 94” wide door opening
- Enclosed gooseneck
- 5.5 KW generator with fuel station and timer
- R-34 roof, R-38 floor, R-11 sidewall insulation
- LP quick connect for BBQ grills
- Side awning with LED lights
- Painted front cap
- Rear folding side ladder
A/V Equipment
- 32” color LCD T.V. in bedroom
- Cable TV/Satellite hook-ups
- 5.1 Digital Dolby surround sound in living area with Bluetooth and Blu-ray
- 58” LCD HDTV flat screen TV (most models)
- Two exterior marine grade speakers
- Separate DVD/CD/MP3/AM/FM Bluetooth stereo for garage and exterior
Garage Area
- Plywood garage flooring
- Steel D-ring tie downs
- 3000 lb. rated ultra-light ramp door
- Large 8’ garage door ramp
- Recessed hidden beaver-tail storage compartment
- Heat duct in garage
- Electric rear screen
- Oversized windows max ventilation
- Decorative chair rail
- Built-in overhead cabinets with entertainment center
- Power Queen beds with convertible sofa
- Heat strip in the garage A/C
Options
- Full body paint
- Canadian arctic package
- Free standing table with sofa
- Removable edged cargo carpet
- Dual pane windows
- Ramp door patio with electric garage door awning
- Patio stairs
- Three seasons wall
- 40” outside TV
- 3rd A/C in living area
- 23 cu ft residential refrigerator with inverter and batteries
HD Edition Package Includes:
- High gloss gray metallic sidewall
- HD edition graphics
- Painted front cap
- Convection oven
- 2nd fuel cell 20gal
- 40” garage tv
- Solid surface counter top in bedroom
- 2nd rear awning
- Central vacuum
- Backlight slide out fascia TACO
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
