Floorplan - 2016 Newmar Mountain Aire 4553
-
45ft long
-
44,800 lbs
-
Sleeps 4
-
3 slides
-
Cummins ISX 500 Hp

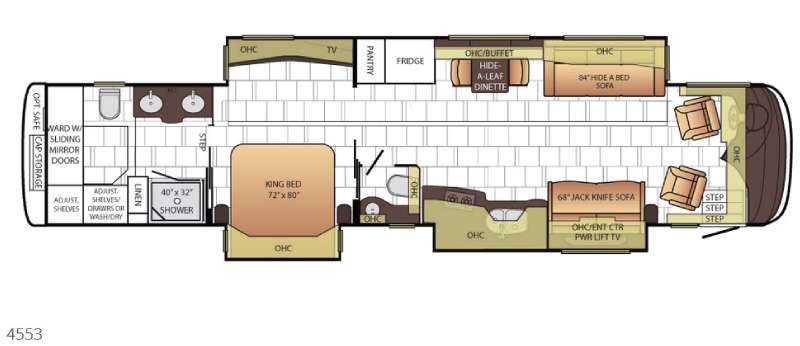

4553 Floorplan
Specifications
| Sleeps | 4 | Slides | 3 |
| Length | 44 ft 10 in | Ext Width | 8 ft 6 in |
| Ext Height | 13 ft 2 in | Int Height | 7 ft |
| Interior Color | RED/BLACK | GVWR | 54000 lbs |
| Dry Weight | 44800 lbs | Cargo Capacity | 9200 lbs |
| Fresh Water Capacity | 105 gals | Grey Water Capacity | 65 gals |
| Black Water Capacity | 45 gals | Furnace BTU | 50000 btu |
| Fuel Type | Diesel | Miles | 45000 |
| Engine | Cummins ISX 500 Hp | Chassis | Freightliner |
| VIN | 4UZFCTBG5GCGS4011 |
Description
You will love that the Mountain Aire 4553 motor home by Newmar has triple slides, and one of the slides is a wall slide which really helps to open up the living space. You will also find a bath and a half, king bed, and plenty of storage space for all of your necessary items.
As you enter this motor home, you will love the openness and spaciousness of the kitchen/living area. Both of the driver and passenger seats swivel around to provide additional seating in the front living area. The slide along the door side has a 68" jack knife sofa with a power lift TV above the sofa. There is also a double kitchen sink, two burner range, drawer dishwasher, and an appliance garage. Also above this slide there is an overhead cabinet which provides great storage. Just past this slide, down the hall you will come to the half bath.
The wall slide located along the driver side of the motor home has a 84" hide-a-bed sofa, buffet, hide-a-leaf dinette, refrigerator, large pantry, and in the bedroom the slide continues with a drawers and an overhead TV.
Also in the bedroom you will find another slide with a king bed and an overhead cabinet above the bed to help keep your things neat and tidy. Next to the bed there are nightstands on either side of the bed.
The master bathroom has two sinks, toilet, wardrobe with sliding door, adjustable shelves, washer dryer, linen cabinet for towels or toiletries, and a 40" x 32" shower, and so much more!
Features
Chassis
- Freightliner® Passive Steer Tag Axle SL Chassis with 500 HP Cummins® ISX Diesel Engine
- Cruise Control
- Comfort Drive™ Steering with Adjustable Controls
- Polished Aluminum Wheels
- Recessed Fuel Fills with Crossover to Fill from Either Side
- Back-Up Alarm
- Anti-Lock Braking System
- In-Dash Electronic Chassis Information Center
- Air Leveling Control System
- Three 15M Penguin™ Heat Pump Air Conditioners with Remote Control Thermostat
- Hydronic Zone Diesel Heating System with Continuous Hot Water
- Wall-Mounted Heating and Air Conditioning Sensors
- Propane Gas Leak Detector
- Dash Heater and Air Conditioner
- Air Conditioning Drainage System on Roof
- Driver and Passenger Dash Overhead Ventilation System
- 30” Convection Microwave with Recessed Two-Burner Gas Cooktop
- Countertop-Matching Flush Gas Cooktop Cover
- Norcold® 12 Cf. Refrigerator with Icemaker & Water Dispenser
- Prep for Two-Piece Washer/Dryer
- Air Horns
- Fireplace in Living Area*
Audio, Video & Accessories
- Sony® LED TV & Blu-ray/DVD player in Living Area and Bedroom (Sizes Vary Per Floor Plan)
- Sony® 48” LED with Televator TV in Living Area*
- Bose® Cinemate Home Theater System
- AM/FM/CD Dash Radio with Harman/JBL® 360-Watt Sound System with Subwoofer
- High Definition Wiring
- Color Rearview Monitor System with Audio
- Two Bedroom Radio Speakers
- Satellite Prep on Roof
- TV Jack and 110-Volt Receptor in Door-Side Exterior Storage Compartment
- Winegard® Digital Crank Up TV Antenna
- Infra-Red Repeater System for Operating Audio/Video Components
- Sable Maple Cabinetry with Mitered Raised Panel Glazed Doors
- Concealed Hinges on Cabinet Doors
- High-Polish Solid-Surface Countertop in Kitchen with Undermounted Stainless Steel Sink
- High-Polish Solid-Surface Countertop in Bathroom and Bedroom
- Drawers with Full Extension Guides
- Flexsteel® Power Extenda Flex Dinette*
- Flexsteel® Ultralux Leather Sofa and Front Seats with Integrated Seat Belts
- Six-Way Adjustable Heated Driver/Passenger Seats with Power Lumbar Support and Power Footrest
- Lifts on Bed Top
- Passenger Seat Work Station
- Plush Pillow Top Mattress
- Pullout Pantry Shelves*
- Cedar Paneling in Bedroom Wardrobe
Electrical
- 10.0 Kw Cummins® Onan® Diesel Quiet Series Generator on Hydraulic Slide-out Tray
- 50-Amp Electrical Service with Flexible Cord and Automatic Transfer Switch
- 12-Volt Auxiliary Receptor on Dashboard
- Four 6-Volt House Batteries on Pullout Tray
- 10-Watt Solar Panel to Charge Chassis Battery
- 3000-Watt Inverter
- Midship Side Turn Signals
- Lit Wardrobes
- Interior Courtesy Lighting
- Accent Lights in Feature Ceiling, Slide-out Fascia Trim, Lambrequins, Kitchen, Bed Base and Underneath Dash
- Automatic Generator Start on Low Battery or Temperature Setting
- Battery Disconnect Switch for House Battery
- Emergency Engine Start Switch
- Engine Block Heater
- Exterior Security Lights
- Manually Operated Hold-to-Run Slide-out Switch
- USB Charger at Dinette & Bedroom Nightstand
- Cable TV Connection
- LED Lighting in Exterior Storage Compartments, Controlled by an Interior Master Switch
- Energy Management System
- Power-Rewind Reel with 50’ Cord
- Recessed Docking Lights
- Secondary Multiplex Touch Screen in Bedroom
- Silverleaf Multiplex Electrical Wiring System
- Solar Prep Wire from Roof to House Battery Compartment
Exterior
- Full-Paint Masterpiece Finish™ with Cut & Buff and Nano Shield Protection on Front Cap
- Assist Handle at Entrance Door
- Convex Chrome Exterior Mirrors with Remote Control, Defrost, Turn Signals & Side-View Cameras
- Mud Flaps
- Rear Protective Tow Guard
- Stainless Steel Exterior Trim Pieces and Kick Panel at Entrance Door
- Painted Power Baggage Door Locks, Keyless Entry Door with Touch Pad & Doorbell
- Undercoating
- Lit Exterior Storage Compartments with Cargo Liner
- Automatic Step for Entrance Door
- Rear Hitch for Towing Car
- Hydraulic Leveling Jacks
- Designer Feature Ceiling
- Cathedral Ceiling with Added Height to Rear Bathroom Floor Plans*
- Auto Motion Power Shades at Windshield, Driver & Passenger Side Windows
- Auto Motion Power Window Shades and Lambrequins
- Tile Floor in Kitchen, Bathroom, Bedroom and Living Areas
- Interior Assist Handle at Main Entry Door
- Quilted Bedspread and Accent Pillows
- Hardwood Raised Panel Interior Passage Doors
- Hardwood Window Sills
- Shoe Storage Shelves Recessed into the Rear Cap Wardrobe
- 10 Bc Fire Extinguisher, Smoke Detector and Carbon Monoxide Detector
- Demand Water System
- Solid-Surface Shower Walls with Glass Door
- Dometic® 321 China Bowl Stool or Macerator Stool*
- Exterior Shower
- Sewage Holding Tank Rinse
- Water Filter for Entire Unit
- Automatic Fill For Fresh Water Tank
Construction
- Fiberglass Roof with Walkable Decking & Integrated Gutter Rail
- Gelcoated Fiberglass Exterior Sidewalls, Front and Rear Caps
- Aluminum-Frame Sidewalls & Roof Construction, 16" on Center
- 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
- Mechanical Lock Arms on All Slide-out Rooms
- Polar Pak R19 Batten Insulation in Roof
- One-Piece Tinted Windshield
- Frameless Double-Pane Tinted Safety Glass Windows
- Fan-Tastic® Vent with Rain Sensor in Kitchen and Bathroom
- Girard® G2000 Power Side Awning with Wind Sensor, Remote Control and LED Lights
- Dometic® Slide-out Covers & Power Entrance Door Awning with LED Lights*
- Skylight Above Shower*
- Driver-Side Power Window
- Egress Door in Rear Bathroom*
- Hardwood Cover on Fan-Tastic® Vent in Kitchen
- Spartan® Passive Steer Tag Axle K3 Chassis with 500 HP Cummins® ISX Diesel Engine
- Trip Travel Information
- Vorad® Adaptive Cruise System
- Electric Radiant Heat Installed Below Floor Tile
Appliances
- Dishwasher in a Drawer Located Below Cooktop
- All Electric, Flush-Mount Induction Cooktop, Whirlpool® 19.7 Cf. Refrigerator, 4 Extra Batteries, 2800-Watt Inverter
- All Electric, Flush-Mount Kenyon® Cooktop, Whirlpool® 19.7 Cf. Refrigerator, 4 Extra Batteries, 2800-Watt Inverter
- Whirlpool® 19.7 Cf. Refrigerator with Two Extra Batteries
- Dometic® Freezer on Pullout Tray in Exterior Compartment
- Whirlpool® Two-Piece Stacked Washer/Dryer
- Central Vacuum with Tool Kit
- Dometic® 3.77 Cf. Freezer on Pullout Tray in Exterior Baggage Compartment
Audio, Video & Accessories
- Sirius® Satellite Radio Capability (Does Not Include Monthly Subscription)
- Dash Radio with Touch Screen Navigation System
- Sony® 40” LED TV in Front Overhead
- 48” Televator TV Behind Door-Side Non-Sleeper Fixed Sofa
- Exterior Entertainment Center in Sidewall with Sony® 40” LED TV and Soundbar
- Exterior Entertainment Center in Storage Compartment with 40” Sony® LED TV and Soundbar
- Two 11” LCD Flip-Down Monitors and DVD Players with Headphones, One at Each Bunk*
- Winegard® Digital Power Lift TV Antenna
- Winegard® Automatic Satellite Dish
- KVH® In-Motion Dome-Shaped Satellite Dish
- Carmel Glazed Cherry Cabinets
- Manhattan Glazed Maple Cabinets
- Wicker Maple Cabinets
- Euro-Booth Dinette and Two Folding Chairs
- Off-Door Side Extenda Flex Dinette
- Combination Desk/Dinette with Roll Away table, 2 Fixed and 2 Folding Chairs
- Combination Desk/Dinette with Buffet Table, 2 Fixed and 2 Folding Chairs
- Door-Side Fold & Tumble Sofa with Air Mattress, Off-Door Extenda L-Sofa
- Door-Side Fold & Tumble Sofa with Air Mattress, Off-Door Side Recliners with Lampstand
- Two Off-Door Side Recliners with Lampstand & Door-Side Televator TV
- Door-Side Jackknife Sofa in Place of Fixed Sofa
- Sofa/Euro-Booth Dinette Ensemble
- Power Flip-Up Sofa in Bed Base with Sleep Number® Premier Air Mattress
- Flexsteel® Ultralux Leather Extenda Flex Dinette
- Sleep Number® Premier Air Mattress
Electrical
- Eight AGM House Batteries*
- 12.5 Kw Onan® Diesel Generator
- LED Lights Installed Under Door-Side Slide-outs
- Chrome Exterior Baggage Door Handles
- Stainless Steel Trim Kit for Exterior Baggage Doors
- Large Storage Tray with Access from One Side or Either Side
- Large Storage Tray
- Power Sliding Storage Tray
- Safe Located in Bedroom Wardrobe
- Silhouette Power Window Shades
- Carpet in Bedroom in Place of Tile
- Assist Handle in Shower
- Fold-Down Shower Seat
- Power Water Hose Reel
- Hot Water Line to Generator Area
- Black China Bowl Stools
- RV Sani-Con System
Windows, Vent & Awnings
- Additional Girard® G2000 Side Awning on Door Side
- Two Nova Side Awnings, Slide-out Covers, Entrance Door & Power Window Awnings
*Check with dealership on floorplan availability.
