1 of 39
+39- Our Price: $139,900
- List Price: $260,260
- Discount: $120,360
Payments From:
$1,154 /mo.
-
24ft long
-
9,300 lbs
-
Sleeps 2
-
1 slides
-
Mercedes-Benz 3.0L V6 Turbo Diesel
-
188 HP

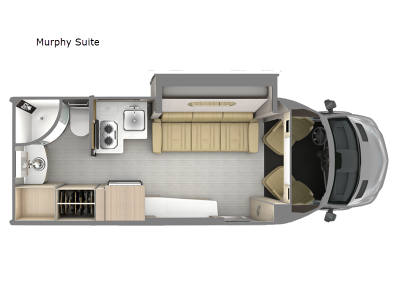

MURPHY SUITE Floorplan
MURPHY SUITE Floorplan
Specifications
Specifications
| Sleeps | 2 | Slides | 1 |
| Length | 24 ft 6 in | Ext Width | 6 ft 8 in |
| Ext Height | 9 ft 8 in | Int Height | 6 ft 2 in |
| Interior Color | WHITE | Exterior Color | SILVER |
| Hitch Weight | 5000 lbs | GVWR | 11030 lbs |
| Dry Weight | 9300 lbs | Cargo Capacity | 1730 lbs |
| Fresh Water Capacity | 23 gals | Grey Water Capacity | 24 gals |
| Black Water Capacity | 11 gals | Furnace BTU | 16000 btu |
| Fuel Type | Diesel | Miles | 10498 |
| Engine | Mercedes-Benz 3.0L V6 Turbo Diesel | Chassis | Mercedes-Benz Sprinter 3500 Extended |
| Horsepower | 188 hp | Fuel Capacity | 24.5 gals |
| Wheelbase | 170 in | Torque | 325 ft-lb |
| Refrigerator Type | 12V | Refrigerator Size | 3.1 cu ft |
| Cooktop Burners | 2 | Number of Awnings | 1 |
| LP Tank Capacity | 9.8 gals | Water Heater Type | On Demand Continuous Flow |
| AC BTU | 13500 btu | TV Info | 2 LED Widescreen HDTVs |
| Awning Info | Power Armless with Auto-Retract | Gross Combined Weight | 15250 lbs |
| Shower Type | Wet/Bath Shower | Electrical Service | 30 amp |
Description
Description
The
2022 Airstream Atlas Murphy Suite is a luxury Class B+ diesel motorhome built on the Mercedes-Benz® Sprinter 3500 chassis. It features a unique power slide-out that expands the living area and accommodates a large Murphy bed, along with a spacious residential-style rear bathroom. Key Features
- Power Slide-Out Murphy Suite: A prominent feature, the slide-out expands the interior living space at the touch of a button when parked. It houses a power sofa that converts into a 73" x 73" Murphy bed with a Froli ergonomic bed support system for comfort.
- Residential-Style Rear Bathroom: The bathroom spans the entire rear of the coach and features a large corner shower with a teak inlay, a Kohler® sink and faucet, and a cedar-lined wardrobe closet. A tankless water heater provides continuous hot water.
- High-End Galley: The kitchen is equipped with a 9.1 cu. ft. 12-volt refrigerator with freezer, a 1.1 cu. ft. convection microwave, a two-burner cooktop with an integrated cover, and a large stainless steel Kohler® sink.
- Mercedes-Benz Safety & Performance: Built on the reliable Mercedes-Benz® Sprinter 3500 chassis with a 3.0L V6 Turbo Diesel engine, the coach includes active safety features like Active Brake Assist, Active Lane Keeping Assist, and a MBUX Infotainment System with voice recognition and navigation.
Features
Features
Standard Features (2022)
Some Specifications
- 1.1 cu. ft. Convection Microwave
- Mercedes-Benz® Sprinter 3500 Chassis
- Mercedes-Benz® 3.0L V6 Turbo Diesel
- BlueTEC SCR Technology, 50 State – EPA/CARB Standards
- 188 HP / 325 lbs. torque
- 7 Speed Automatic Transmission
- Mercedes-Benz® Adaptive ESP® (Electronic Stability Program)
- Tow Package Mercedes-Benz® Hitch, 7 Pin Trailer Plug, Brake Control Pre-wired
- Tow Capacity** Up to 5,000 lbs.
- Trailer Safety System Mercedes-Benz® Trailer Stability Assist System
- 20 gals (Fresh), 31 gals (Gray), 27 gals (Black)
- LPG 9.76 gals (41.38 lbs.) 80% fill
- Diesel Fuel 24.5 gals
- 15,000 BTU Quietstream™ Ducted with Heat Pump Air Conditioner
- 16,000 BTU Furnace
- 60,000 BTU On-Demand Continuous Flow Water Heater
- Fresh, Gray & Black Tanks (12 volt) Heated Tanks
- Refrigerator & Freezer 9.1 cu. ft. (12 volt)
- 2 Burner Cooktop with Integrated Cover
- LP Gas Detector, Smoke and CO2 Alarm, Fire Extinguisher, First Aid Kit
- Macerator Pump System w/Electric Retract
- Omni Directional In-motion VHF/UHF
- Cable TV Outlets/Hook-ups
- Pre-wired for Satellite Dish
- Touch Screen/Touch Pad Electronic Controls with Energy Management System
- 50 amp Multi-stage Charger, 1,000 Watt Pure Sine Inverter
- 3.2 kW (Diesel) with Remote Start
- 30 amp/110 Volt Service
- 400 Watt Solar System
- Steering Wheel Paddle Shifters
- 30 AMP Service Single A/C with Heat Strip 11,500 BTU Pre-wired for Connected Service
- 2 – 100 Ah Deep Cycle Lithium Battle Born Batteries (LiFePO4)
Safety
- Active Blind Spot Assist
- Active Brake Assist
- Active Cruise Control Assist
- Active Driver Attention Assist
- Active Lane Keeping Assist
- Active Rear Cross Traffic Assist
- E-Call Assist
- Fire Extinguisher
- Four Seat-Belt Positions
- Front and Rear Parktronic Parking Assist
- High Mounted Third Brake Light
- Multiple Safety Impact Air Bags
- Rear Camera Assist with Always-On Viewing & Adjustable Angle
- Side Camera Assist Integrated in Side Mirrors
- Smoke, CO2 & LPG Detectors
- Traffic Sign Assist
- Wet Wiper System
Exterior
- 110V Outlet, HDMI & Coaxial Output
- Air Ride Suspension
- Alcoa® DuraBright Aluminum Wheels
- BASF Metallic OE Paint with Cut & Buff Finish
- Chrome Package (body line trim, grill, license plate holder)
- Exterior Shower with Hot & Cold Water
- Fog Lamps
- Frameless Radius-Corner Tilt-Open Windows
- Front Lower Spoiler
- Hidden Hitch Cover Rear Bumper
- Hidden Retracting Screen Door
- LED Patio & Awning Lighting
- LED Undercarriage Lights with Dimmer
- LP Accessory Hook-up (Grill)
- Mercedes-Benz® OE Sprinter Tail Lights
- Power Armless Awning with Auto-Retract
- Power Entry Step with Hidden Design
- Power Stabilizer Jacks
- Remote Locking Storage Doors with Hidden Latches
- Storage Compartments with LED Motion Lights
Cockpit
- Advanced Multifunctional Steering Wheel
- Custom Carpet Floor Mat
- Entry Door Lighting
- Front Bed System (Optional)
- Heated Swivel Driver/Passenger Seats
- In-Dash Maintenance Monitoring System
- In-Dash Wireless Cell Phone Charging
- MBUX Infotainment System (Mercedes-Benz User Experience) Touch Screen, Pinch, Zoom, Voice Recognition, Apple Carplay, Android Capability
- Multifunctional Steering Wheel
- Overhead Map Lights
- Privacy Shades
- Rear & Side View Camera Monitor
- Tilt & Telescopic Steering Wheel
Main Cabin
- Adjustable LED Lighting
- Flush-Mount Cabinet Hardware & Soft Close Doors
- Froli® Ergonomic Bed Support System
- LED 40" Widescreen HDTV & Soundbar on Power Lift
- Marine Woven Synthetic Flooring
- Matte Finish Laminate Cabinetry
- Multiplex Control System with 7" Color Touchscreen
- Pedestal Table (2)
- Power Opening Sunroof Skylight with Screen & Shade
- Power Sofa with Integrated Murphy Bed
- Power Tilting Oceanair Window Shades
- Signature Aluminum Ceiling & Trim
- Ultraleather® Seating
- USB Charging Ports
- Vinyl with Urethane Covering on Walls and Windows
- Wardrobe Closet
Galley
- Aluminum Refrigerator Fascia
- Drop-In Waste Basket with Solid-Surface Cover
- Fantastic® Fan with Temperature & Rain Sensors
- Galley Extension Pull-Out Shelf
- Kohler® Faucet & Sink with Flush Solid-Surface Cover
- Solid-Surface Countertop with Aluminum Backsplash
Bathroom
- Cedar Lined Wardrobe Closet
- Corner Shower with Teak Wall Inlay
- Fantastic® Fan with Temperature & Rain Sensors
- Integrated LED Shower Lighting
- Kohler® Faucet, Shower Head & Sink
- Mirrored Medicine Cabinet
- Riveted Aluminum Porthole Door
- Storage Drawers
- Toilet
- Towel Rack
Construction
- Azdel Composite Roof/Floor/Wall Material
- Curved Composite Storage Doors with Continuous Hinge
- Floor – Vacuum-Bonded Aluminum-Framed
- Interlocking Extrusion Joints with Huck Rivets
- Molded Fiberglass Front & Rear Caps
- Roof – Fiberglass Crowned Vacuum-Bonded Aluminum-Framed
- Trimless Smooth Fiberglass Body Seams
- Walls – Radius Vacuum-Bonded Aluminum-Framed
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
