+76- Our Price: $759,850
- List Price: $1,101,877
- Discount: $342,027
-
45ft long
-
46,300 lbs
-
Sleeps 6
-
3 slides
-
Cummins X
-
605 HP

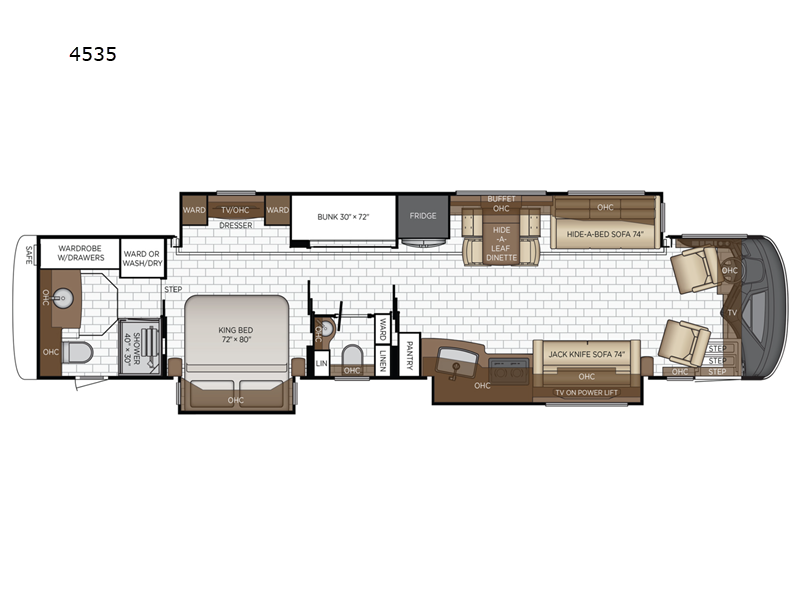

4535 Floorplan
Specifications
| Sleeps | 6 | Slides | 3 |
| Length | 44 ft 10 in | Ext Width | 8 ft 6 in |
| Ext Height | 13 ft 4 in | Int Height | 6 ft 11 in |
| Interior Color | Balboa, Harrison, Montara, Wentworth+* | Exterior Color | Birmingham, Cambridge, Newry, York |
| Hitch Weight | 20000 lbs | GVWR | 54000 lbs |
| Dry Weight | 46300 lbs | Cargo Capacity | 7700 lbs |
| Fresh Water Capacity | 105 gals | Grey Water Capacity | 80 gals |
| Black Water Capacity | 60 gals | Furnace BTU | 50000 btu |
| Generator | 12.5 KW Cummins Onan | Fuel Type | Diesel |
| Engine | Cummins X | Chassis | Spartan K3 |
| Horsepower | 605 hp | Fuel Capacity | 150 gals |
| Wheelbase | 292 in | Number Of Bunks | 1 |
| Available Beds | King | Torque | 1950 ft-lb |
| Refrigerator Type | Whirpool | Refrigerator Size | 19.7 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 3 |
| Shower Size | 40" x 30" | Number of Awnings | 2 |
| Axle Weight Front | 20000 lbs | Axle Weight Rear | 20000 lbs |
| Axle Weight Tag | 14000 lbs | LP Tank Capacity | 22 gals |
| Water Heater Type | Continuous | AC BTU | 45000 btu |
| TV Info | Overhead 43" 4K LED TV, 4K LED TV on Televator, BR LED TV | Awning Info | Nova Side Awnings |
| Washer/Dryer Available | Yes | Gross Combined Weight | 74000 lbs |
| Shower Type | Shower w/Seat | Electrical Service | 50 amp |
| VIN | 4vzvu1r15rc095614 |
Description
Newmar London Aire Class A diesel motorhome 4535 highlights:
- Bath and a Half
- Custom Built 2 Bathrooms and Bunkbeds
- Pantry
- Two Sofas
- Washer and Dryer
- Triple Slides
Now you can bring your neighbor friends along on trips since this motorhome can sleep up to six people each night. The 30" x 72" bunk is right across from the half bath for convenience, and there is a hide-a-bed sofa, along with a jackknife sofa for more sleeping space. You and your spouse will have the master bedroom all to yourselves with a slide out king bed, a dresser, and two wardrobes. And check out the full rear bath with tons of storage space and a shower with a seat! Breakfast can be made on the three burner cooktop or in the 30" stainless steel convection microwave, and the milk can go back in the 19.7 Whirlpool refrigerator. And since this model includes a full-wall slide, you won't have to worry about being cramped on space!
The London Aire Class A diesel motorhome by Newmar starts with a Spartan K3 chassis with tag axle and is covered by a fiberglass roof with an integrated gutter rail. There is also batten insulation and a polyethylene moisture barrier in the floor to ensure years of use. You will stay comfortable with the three 15M Penguin heat pump central air conditioners, and the electric radiant heat beneath the main floor tile will keep your feet warm during those cooler months. Each model includes super polished solid surface countertops, hardwood cabinets with raised panel doors, a plush pillowtop mattress, and many more luxuries. Some of the conveniences you are sure to appreciate are the central vacuum with a tool kit, the Aqua Miser shower system, and the hydraulic leveling jacks for hassle-free set up.
Features
Standard Features (2024)
Exterior
- Full-Paint Masterpiece Finish™ with Cut & Buff and Beta Fusion Protection on Front Cap
- Lighted Newmar Badge in Front Grill
- Convex Exterior Chrome Mirrors with Remote Control, Defrost, Turn Signals and Side-view Cameras
- Entrance Door with Automatic Step
- Rear Hitch for Towing Car
- Assist Handle at Entrance Door
- Mud Flaps
- Rear Protective Tow Guard with Stainless Steel Newmar Name Cutout
- Undercoating
- Hydraulic Leveling Jacks
- Stainless Steel Exterior Trim Pieces and Entrance Door Kick Panel
- Storage Bins in Pegboard Compartment
- Storage Shelf Above Freezer
- Chrome Power Baggage Door Locks, Keyless Entrance Door with Touch Pad & Doorbell
Exterior Options
- Stainless Steel Trim Kit for Exterior Compartment Doors
- Flagpole Bracket
- Storage Tray 26 X 90 Power with Shelf In Top of Compartment, Location-Bay 2
- Storage Tray 26 X 91 Non-Power with Shelf In Top of Compartment, Location Bay 2
- Storage Tray 40 X 90 Power with Shelf In Top of Compartment, Location-Bay 3
- Storage Tray 42 X 91 Non-Power with Shelf In Top of Compartment, Location-Bay 3
- Storage Tray 43 X 56 Non-Power, Location-Bay 4
Construction
- Fiberglass Roof and Integrated Gutter Rail
- Gel-coated Fiberglass Exterior Sidewalls, Front and Rear Caps
- Aluminum-Frame Sidewalls & Roof Construction, 16" on Center
- 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
- Polar Pak R19 Batten Insulation on Roof
- Automatic Mechanical Lock Arms on Non Hydraulic Slideout Rooms-Paddle Style
- Egress Door with Ladder System
Chassis
- Air Leveling Control System
- Aluminum Wheels
- Electronic Chassis Information Center in Dash
- Electronic Stability Control
- Cruise Control
- Comfort Drive™ Steering with Power Column with Adjustable Control
- Recessed Fuel Fills with Crossover to Fill from Either Side
- Back-up Alarm
- Anti-lock Braking System
- Chassis Battery Disconnect
- Automatic Headlights On/Off
- Push Button Engine Start
- On Guard Collision Mitigation Adaptive Cruise System with Adj. Following Distance Control on Spartan Chassis
- Spartan K3 Tag Axle, 605Hp on 45’ London Aire
- Tire Pressure Monitoring System
- Mobileye® Lane Tracking and Lane Departure Warning System
- Steering Wheel Nine Function Switch Pod in Center on Spartan Chassis
- Tank Dump Side Tilt Mode
- Trailer Tow Mode
- Valid Digital Glare Free Dash
- Valor Generation 3 TPMS System on Spartan® Chassis
- KONI Shocks on All Axles
Chassis Options
- Curt Spectrum Integrated Brake Control on Spartan® Chassis
Windows, Awnings, & Vents
- Frameless Double-Pane Tinted Safety-Glass Windows
- Fantastic® Vent with Rain Sensor in Kitchen, Bathroom & Enclosed Stool Room
- Hardwood Louvered Cover on Fantastic® Vent in Kitchen
- Skylight Above Shower*
- Girard Package-Two Nova Side Awnings, Slideout Covers, Entrance Door & Power Window Awnings
- Large Non-Ventilated Living Room and Dinette Windows
- One-piece Tinted Windshield
- Driver Side Power Window
- Bunk Windows
Windows, Awnings, & Vents Options
- Kitchen Windows
Air Conditioning & Heating
- Three 15M Penguin™ Heat Pump with Remote Control Thermostat
- Chinook Dual Loop Heat with Continuous Hot Water
- Dash Heater and Air Conditioner
- Driver & Passenger Dash Overhead Ventilation System
- Wall Mounted Sensors for Heating and Air Conditioning
- Roof Air Conditioning Drainage System
- Electric Radiant Heat Installed Below Main Floor Tile
Electrical
- 12.5 kW Cummins Onan® Diesel Generator
- Generator Start/Stop Function to Touchscreen in Water Bay Compartment
- 10 Watt Solar Panel to Charge Chassis Battery
- 50 Amp Electrical Service with Flexible Cord with Automatic Transfer Switch
- Eight 6-Volt AGM House Batteries
- Battery Disconnect Switch for House Battery
- 3000 Watt True Sine Inverter
- 12 Volt Auxiliary Receptacle on Dashboard
- Emergency Engine Start Switch
- Engine Block Heater
- Energy Management System
- Exterior Security Lights
- Mid-ship Side Turn Signals
- LED Lights Recessed in Ceiling and Underneath Overhead Cabinets
- LED Lighting in Pull-out Pantry, Kitchen and Bathroom Base Cabinets
- Accent Lights in Feature Ceiling, Slideout Fascia Trim and Lambrequins
- LED Lights in Exterior Storage Compartments on Automatic Switches and Controlled by an Interior Master Switch
- Lights in Wardrobes
- Manually Operated Hold-to-Run Slideout Switch
- Automatic Generator Start on Low Battery or Temperature Setting
- Cable TV Connection
- Interior Courtesy Lights
- USB Charger at Dinette & Bedroom Nightstand
- USB Outlet at Dash for Driver Use
- 110 Volt/USB Outlet at Head of Each Bunk Area*
- 110 Volt Recept in Bed Overhead with Two Pass-through Ports
- KIB Touch Screen Interior Light and Shade Controls
- Power Rewind Wheel with 50’ Cord*
- Recessed Docking Lights
- Reading Lights at Head of Bed-Dimmable with Adjustable Aim
- Secondary Multiple Touch Screen in Bedroom
- SilverLeaf® Multiplex Electrical Wiring System
- Lighted Vanity Mirrors
- Solar Prep with Six Gauge Wire from Roof to House Battery Compartment
- Spare Fuses in Chassis and House Fuse Panels
- Wireless Phone Charger Pad in Driver Area
- Wireless Charging Mat Built into Passenger Console
- Transfer Switch with Surge Protector
- Dash Radio, Cameras and Monitors to Power-up from both House Batteries & Ignition
Electrical Options
- LED Strip Lighting Installed Under Off Door Side Slideouts
- Four Flexible 100 Watt Solar Panels on Roof
- 30 Amp/120 Volt Cord Connection for Stacker Trailer
- Lithium Ion 640 AHR Battery System with Two 3000W Pure Sine Inverters
- Lithium Ion 960 AHR Battery System
- Remote Power Switch in Front Overhead Cabinet for Lithium Ion Battery System
Plumbing & Bath
- Demand Water System
- Sewage Holding-Tank Rinse
- Dometic® 321 China Bowl Stool or Macerator Stool*
- Tiled Shower Walls with Glass Door
- Fold-down Shower Seat
- Water Filter for Entire Unit
- Exterior Shower
- Auto Fill for Fresh Water Tank
- Power Water Hose Reel
- Grey Holding Tank Rinse
- Aqua Miser Shower System
- Hot Water Line to Generator Area
- Bladder Tank for Water Pump System
Plumbing & Bath Options
- Assist Handle in Each Shower
- RV Sanicon Turbo System
Cabinets & Furniture
- Bermuda Glazed Maple Hardwood Cabinets with Raised Panel Doors with Matte Finish
- Concealed Hinges on Cabinet Doors
- Super Polished Solid Surface Countertop in Bathroom and Bedroom
- Super Polished Solid Surface Countertop in Kitchen with Undermounted Stainless Steel Sink and Sink Covers
- Lifts on Bed Top
- Passenger Seat Workstation
- Pull-out Pantry Shelves
- Push to Release Drawer Slides in Pantry
- Pantry with Space for Serving Trays/Bakeware
- Drawers with Full Extension Self Closing Guides
- Soft-close Cabinet Doors*
- Villa Ultra Leather Sofa and Driver/Passenger Seats with Integrated Seat Belts
- Heated Front Seats with Power-Lumbar, Recline, Footrest & Queen Sized Passenger Seat
- Plush Pillow Top Mattress
- Extended Rotation Concealed Hinge for Washer/Dryer Cabinet Door
- Side Folding Hide-A-Bed Sofa with Memory Foam Mattress*
- Mesh Cell Phone Holder at Each Bunk Bed*
- Full Height Wardrobes Beside Lav*
- Molded Silverware Divider Tray
- Driver Seat with Vibrator for Haptic Feedback
- Dinette Euro Booth with Two Table Leaves and Two Folding Chairs
- Cooktop Cover Flush, Matching Countertop Material
Cabinets & Furniture Options
- Glacier Glazed Maple Hardwood Cabinets with Mitered Raised Panel Doors-High Gloss or Matte Finish
- Bermuda Glazed Maple Hardwood Cabinets with Raised Panel Doors with High Gloss Finish
- Driftwood Glazed Maple Hardwood Cabinets with Raised Panel Doors-High Gloss or Matte Finish
- Sable Maple Hardwood Cabinets with Raised Panel Doors-High Gloss Or Matte Finish
- R5 Radius Corner Air Mattress
- Power Extenda Flex Dinette
- Convertible Dinette with Two Fixed/Two Folding Chairs
- Euro Booth Dinette with Two Table Leaves and Two Folding Chairs
- Combination Desk with Buffet Table, Two Fixed and Two Folding Chairs
- One Large Ottoman
- Two Recliners with Lampstand and Reading Lights
- Queen-Size Passenger Seat
- Powered Theater Seating 74”
- Powered Theater Seating 87”
Appliances Standard Features
- Stainless Steel 30” Convection Microwave with Air Fryer Feature
- All Electric Cooktop Flush Mount Induction
- Air Horns
- Whirlpool® 19.7 Refrigerator
- Splendide Two-Piece Stacked Washer/Dryer
- Dometic® 3.0 Cf Freezer on Pull-out Tray in Exterior Baggage Compartment*
- Storage Above Freezer
- Central Vacuum with Tool Kit
Appliances Options
- Dishwasher in Drawer with Stainless Steel Front
Interior
- Designer Feature Ceiling and Cathedral Ceiling with Added Height on Rear-bath Floor Plans*
- Tile Floor in Kitchen, Bathroom, Bedroom and Living Area
- Auto Motion Power Window Shades and Lambrequins
- Auto Motion Power Shades for Windshield and Driver/Passenger Side Windows
- Hardwood Window Sills
- Hardwood Raised Panel Interior Passage Doors
- Flush Handles on Swinging Bath Doors
- Maximized Shoe Storage Shelves Recessed into Rear of Wardrobe*
- Interior Assist Handle at Main Entry Door
- Fitted Non-Quilted Bedspread with Accent Pillows
- Safe Located in Bedroom Wardrobe
- Waste Basket in Kitchen Base Under Sink
- Interior Passage Door Hardwood Raised Panel
Audio & Video
- Samsung LED TV Living and Bedroom Areas (TV Sizes Vary Per Floorplan)
- Samsung 50” 4K LED TV on Televator in Living Area*
- Samsung 43” 4K LED TV in Front Overhead
- Bose® 500 Subwoofer
- Bose® 900 Sound Touch Sound Bar in Livingroom
- Rearview Color Monitor System with Audio
- Winegard Rayzar Automatic Digital TV Antenna
- Satellite Dish Prep on Roof
- Radio Sirius XM Capability with Antenna (Does not include monthly subscription)
- Two Bedroom Radio Speakers
- TV Jack and 110 Volt Recept in Door Side Exterior Storage Compartment
- Cat 6 TV Cables
- Infra-Red Repeater System to Operate Audio/Visual Components
- WiFi Ranger Denali/Spruce LTE
- Xite Dash Radio with Apple Car Play, 10” Dual Monitor with Nav-N-Go Navigation System
- Xite HD 360 Camera System with Predictive Grid Lines and Tri-View Rear Camera
- Remote Navigation Programming Via SD Card
- 10 Bc Fire Extinguisher, Smoke Detector, Propane and Carbon Monoxide Detector
Audio & Video Options
- Exterior Entertainment Center in Sidewall with Samsung 43” 4K LED TV and Soundbar
- Exterior Entertainment Center in Storage Compartment with Samsung 43” 4K LED TV & Bose® Soundbar
- Two-19” Skyworth TV/DVD Monitors*
- Extra Monitor on Passenger Side
- Rear Camera (2) Prep for Use with Stacker Trailer
- Universal Toll Module
- Wifi System Everest with Aspen Interior Router
- Winegard Automatic Open Face Satellite Dish-For Dish HD & Bell HD TV
- Winegard Automatic Open Face SWM Satellite Dish-for Direct TV Std/HD & In-Motion Direct TV Std, Dish Std/HD
- Winegard Automatic Open Face Satellite Dish & Winegard In-Motion for Dish Network
- Winegard Automatic Open Face Satellite Dish for Direct TV
- Winegard In-Motion Dome Satellite Dish-for Dish Std/HD, Direct TV Std. & Bell Canada
See us for a complete list of features and available options.
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Save your favorite RVs as you browse. Begin with this one!
Loading
Wade's RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @918-291-1011 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
